Wiring Diagrams

WARNING: This page is about a different car, the 1989 Lincoln Continental. However, it is still accessible from the selected car via links, so may be relevant.

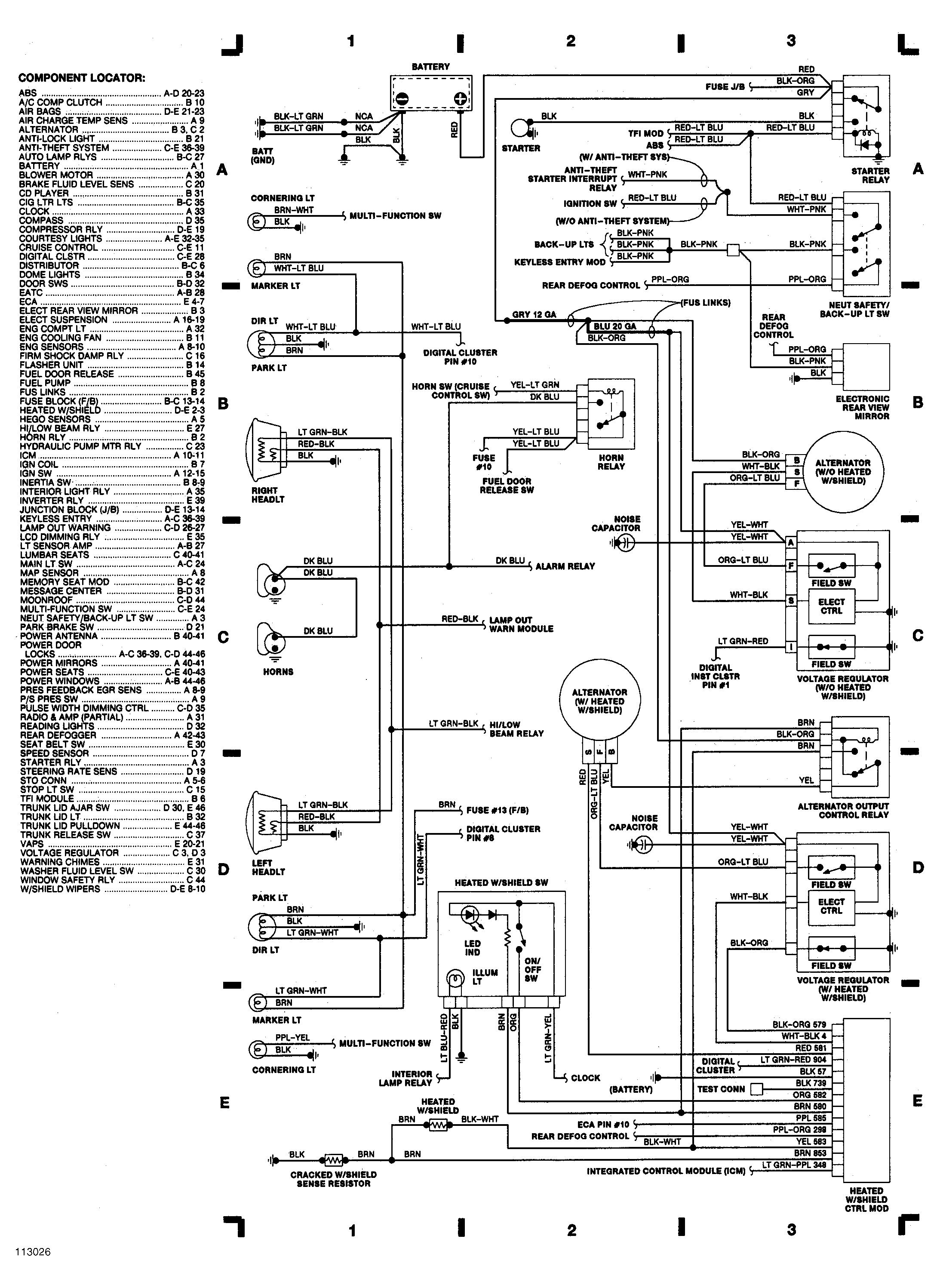

Fig 1: Engine Compartment & Headlights

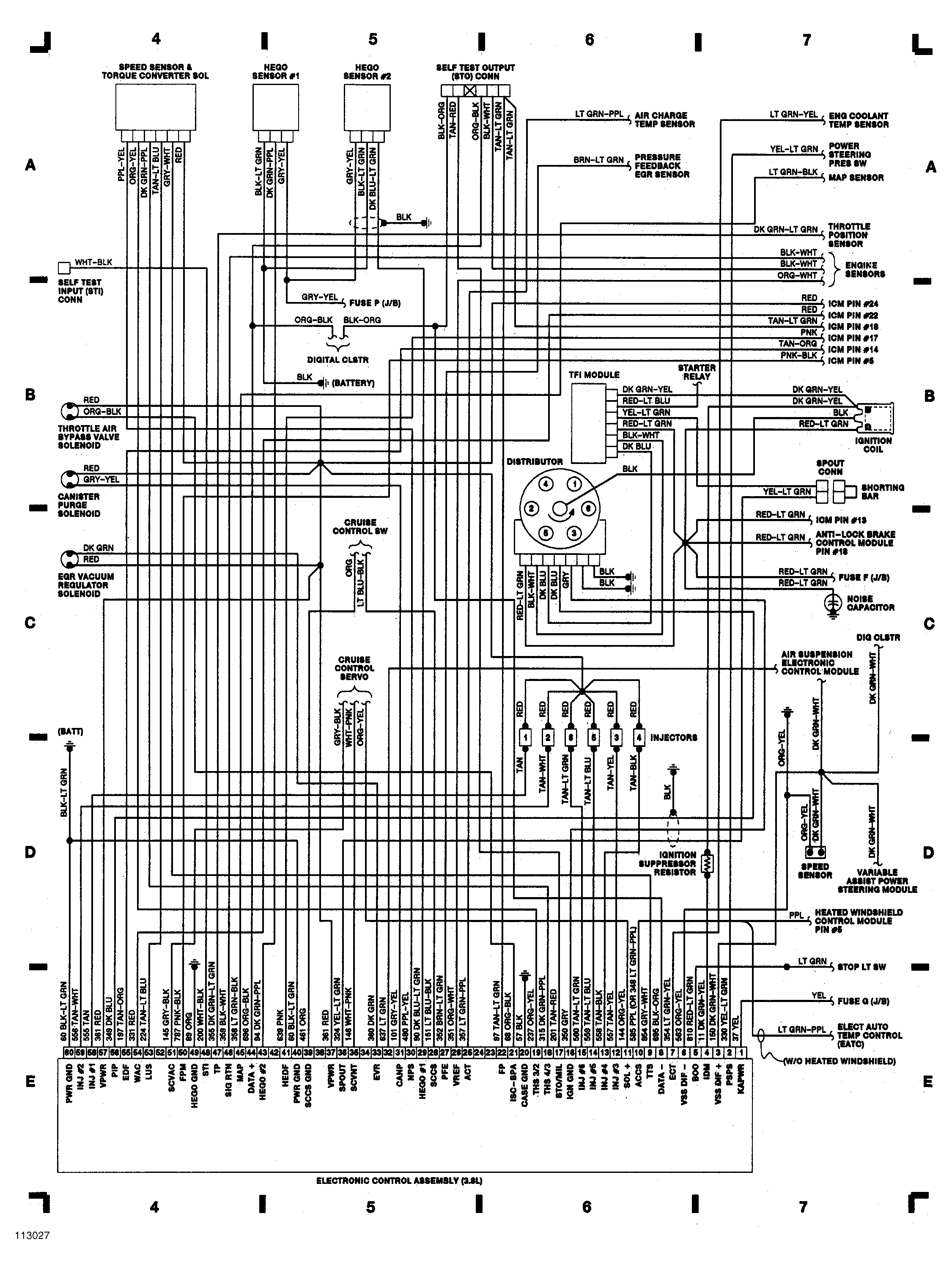

Fig 2: Computer Engine Control

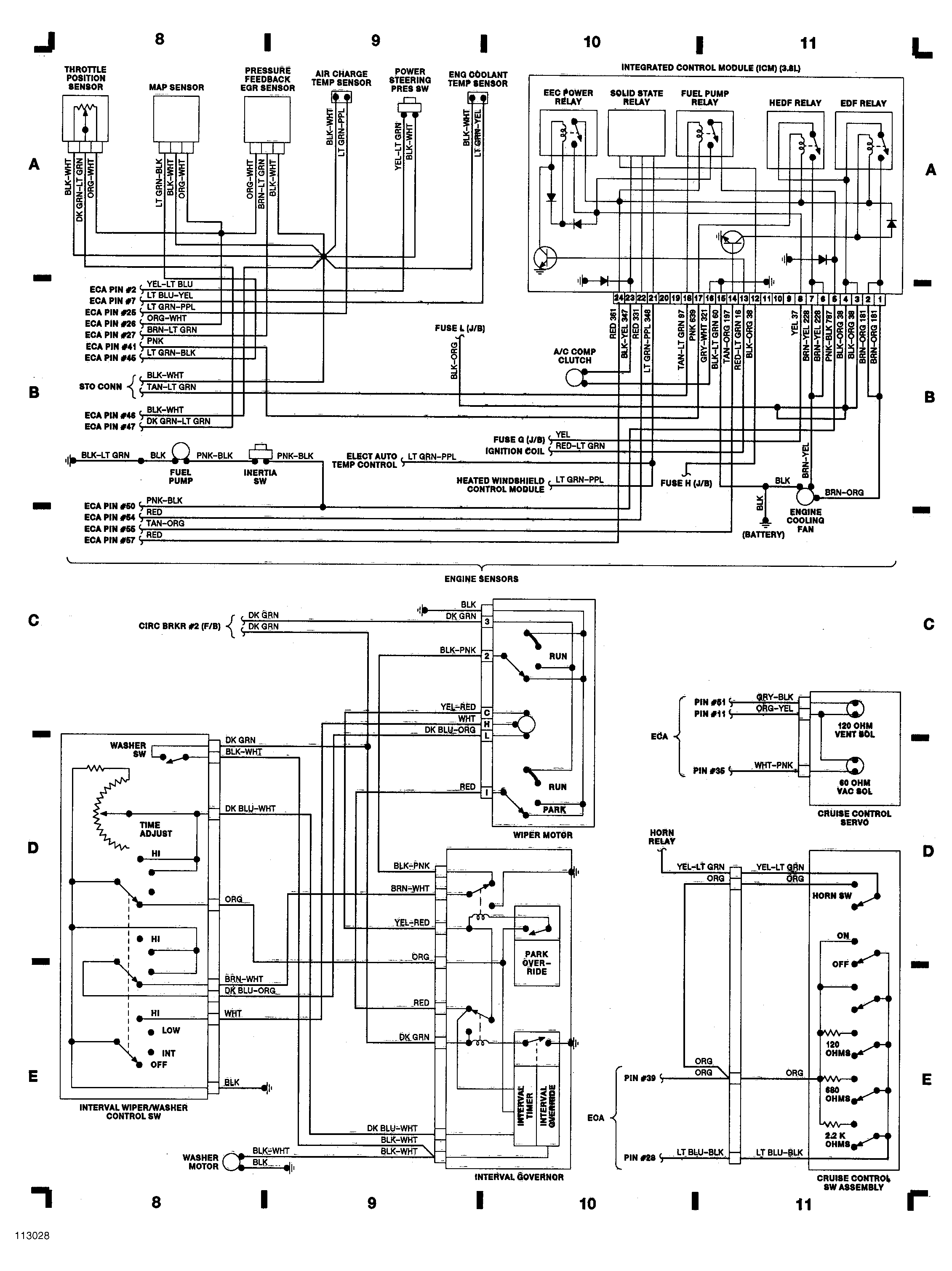

Fig 3: Engine Sensors, Engine Compartment & Wiper Washer System

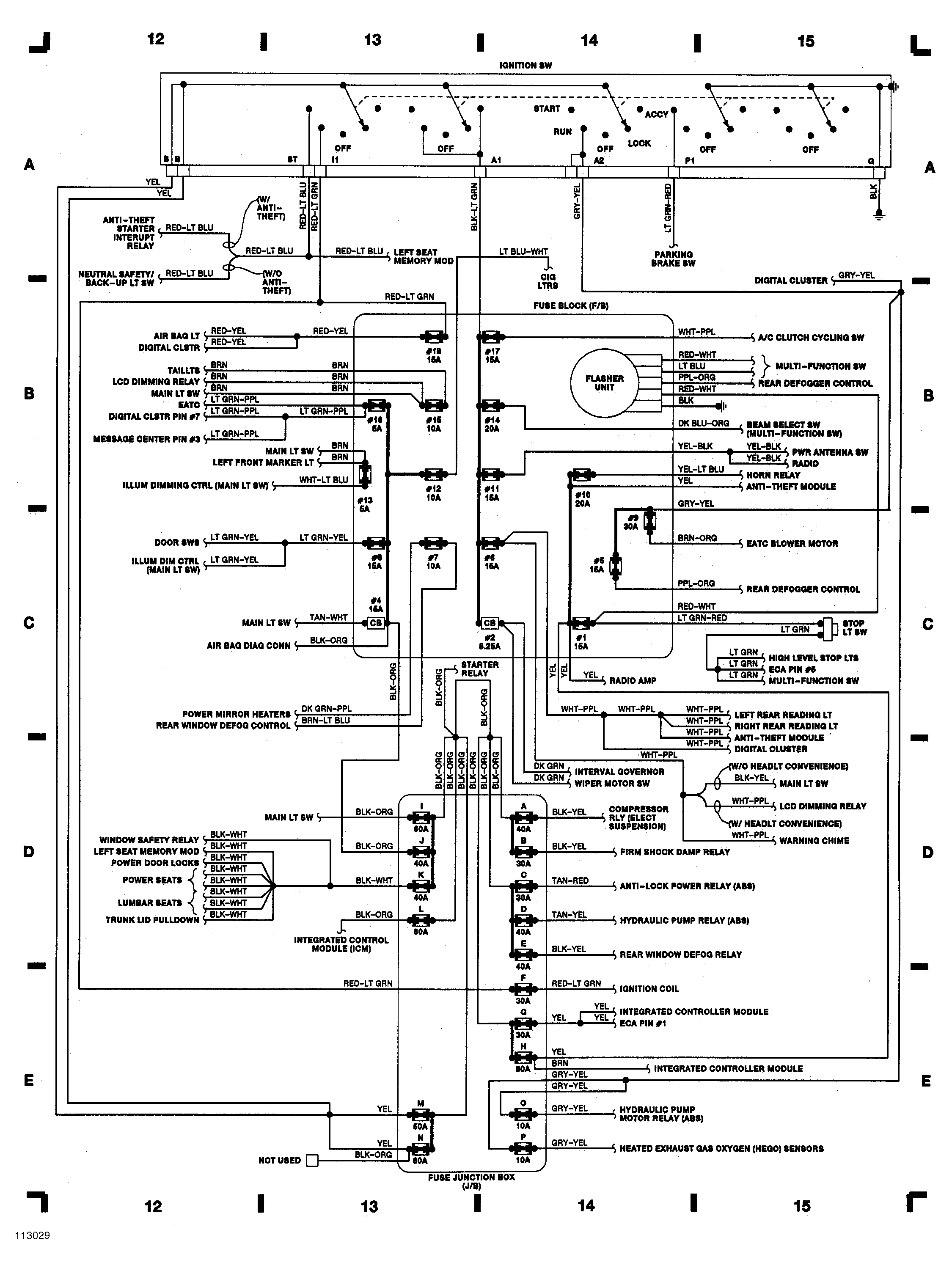

Fig 4: Fuse Block

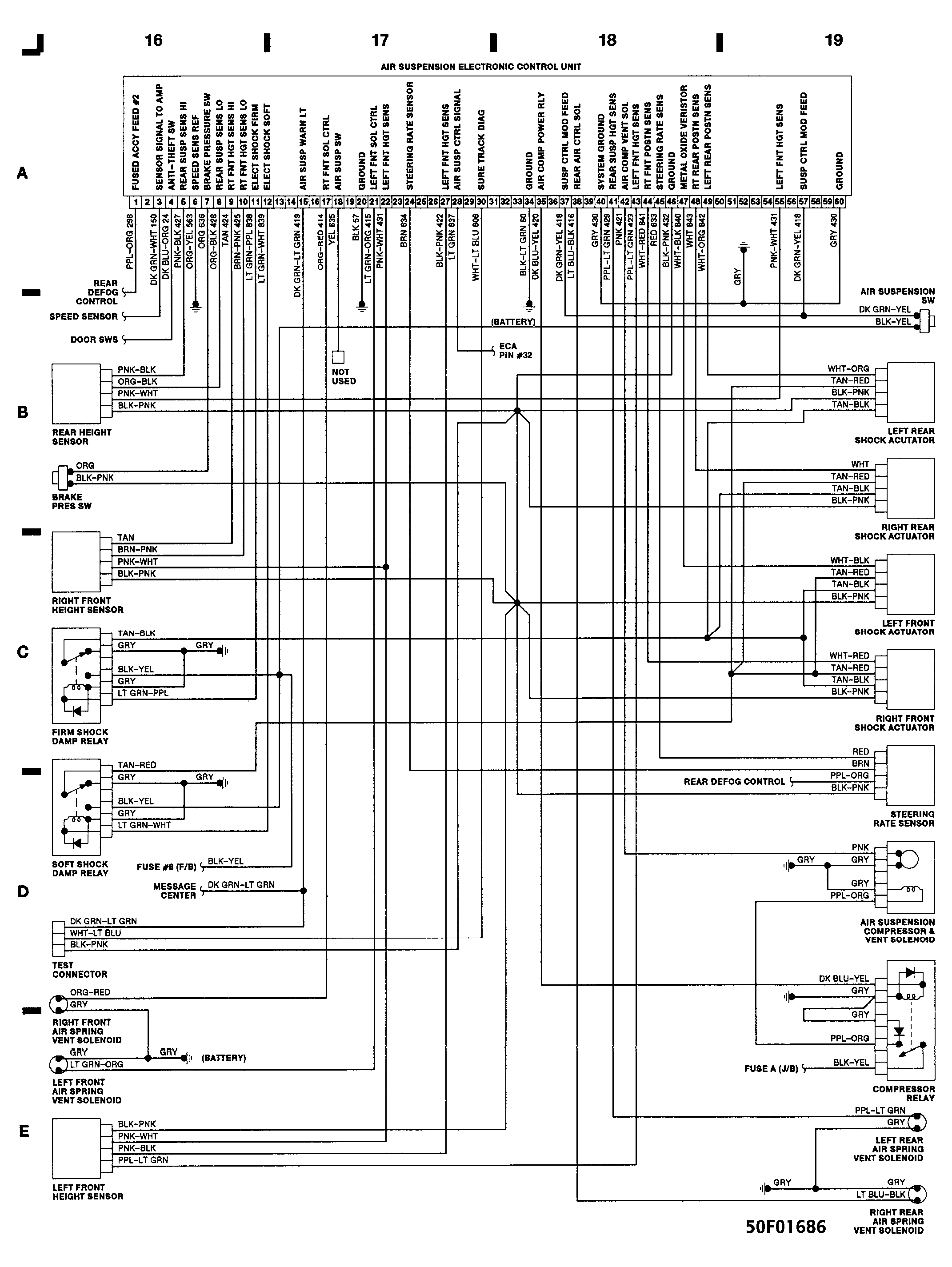

Fig 5: Electronic Suspension System

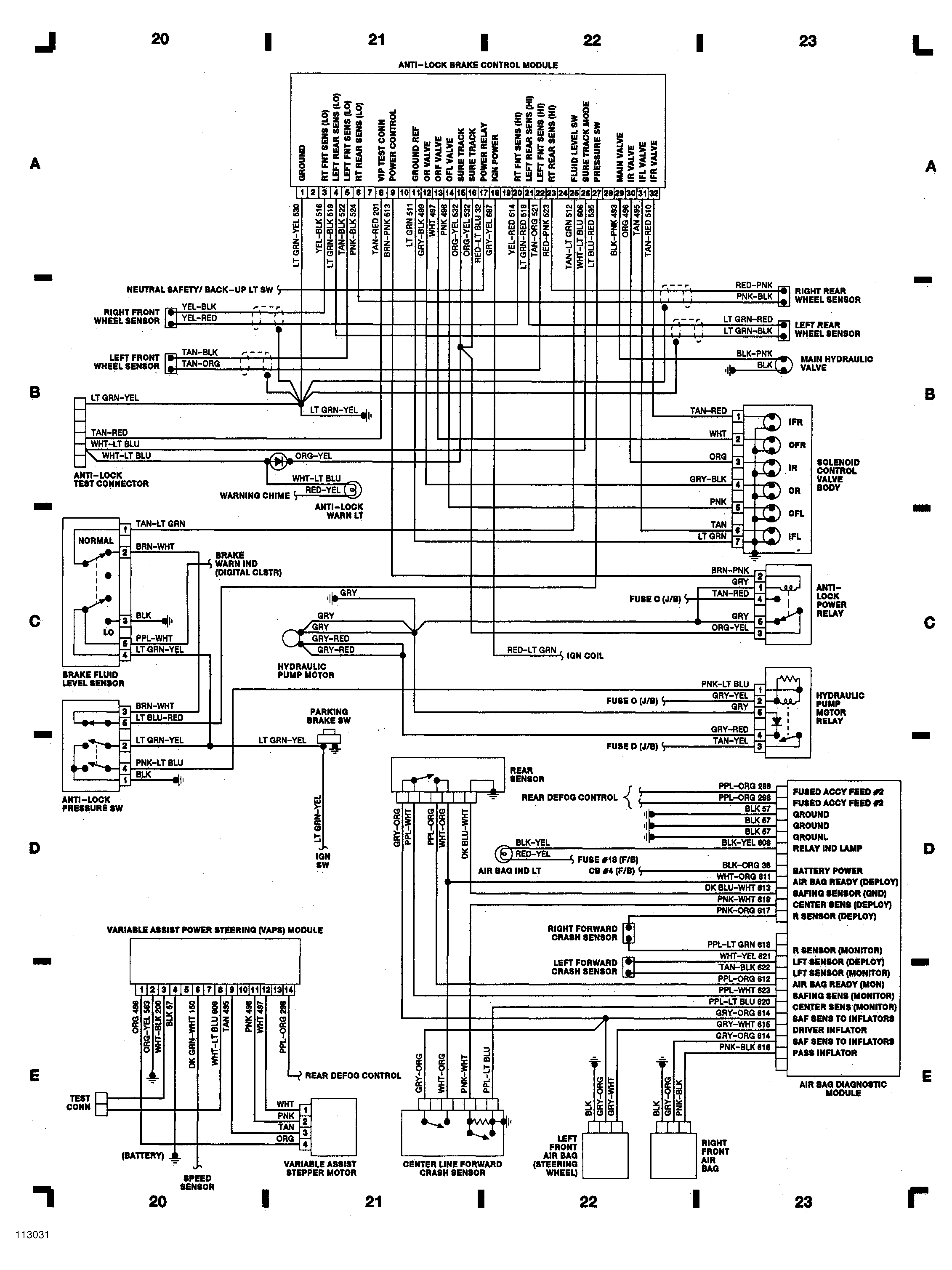

Fig 6: Anti-Lock Brake System

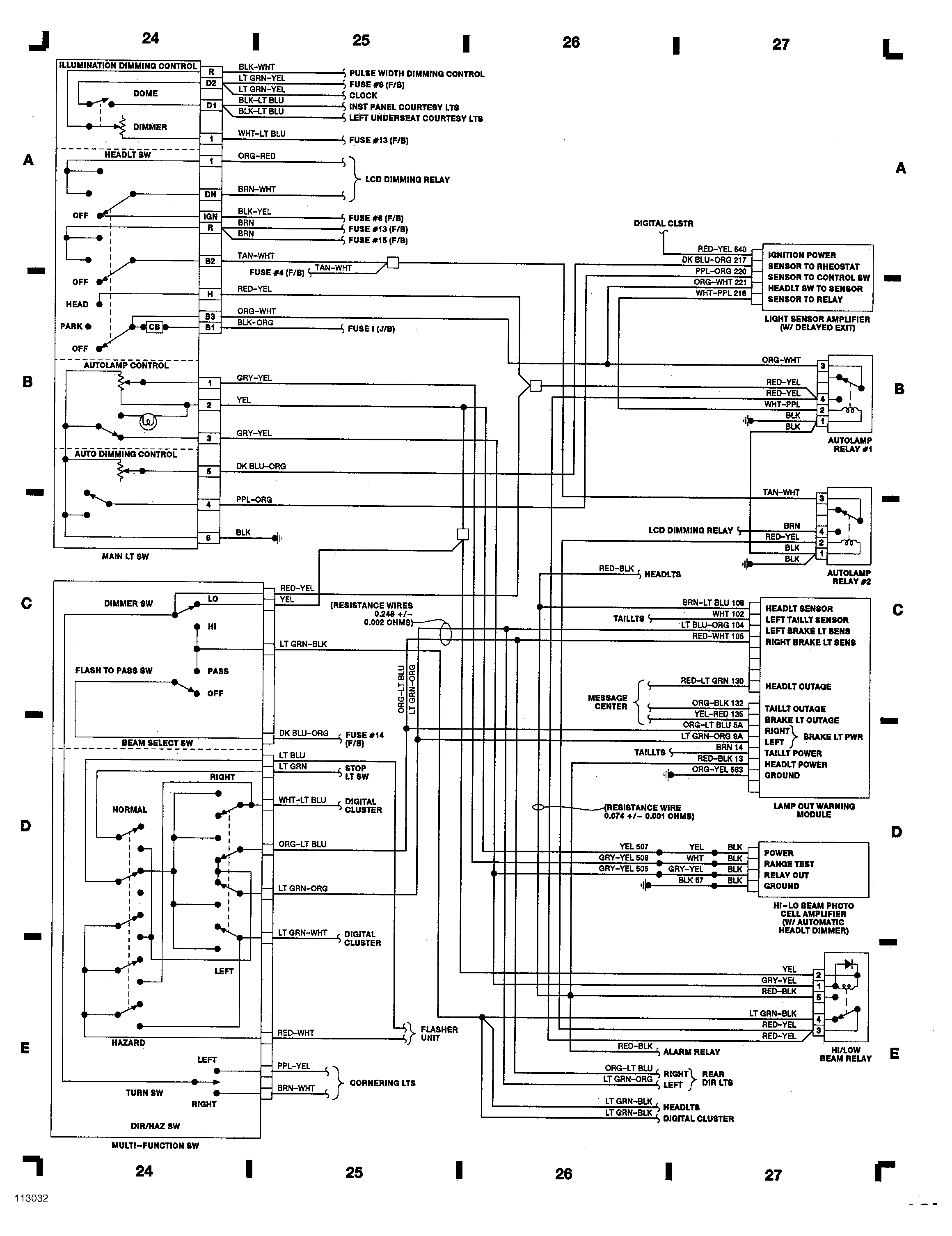

Fig 7: Instrument Panel

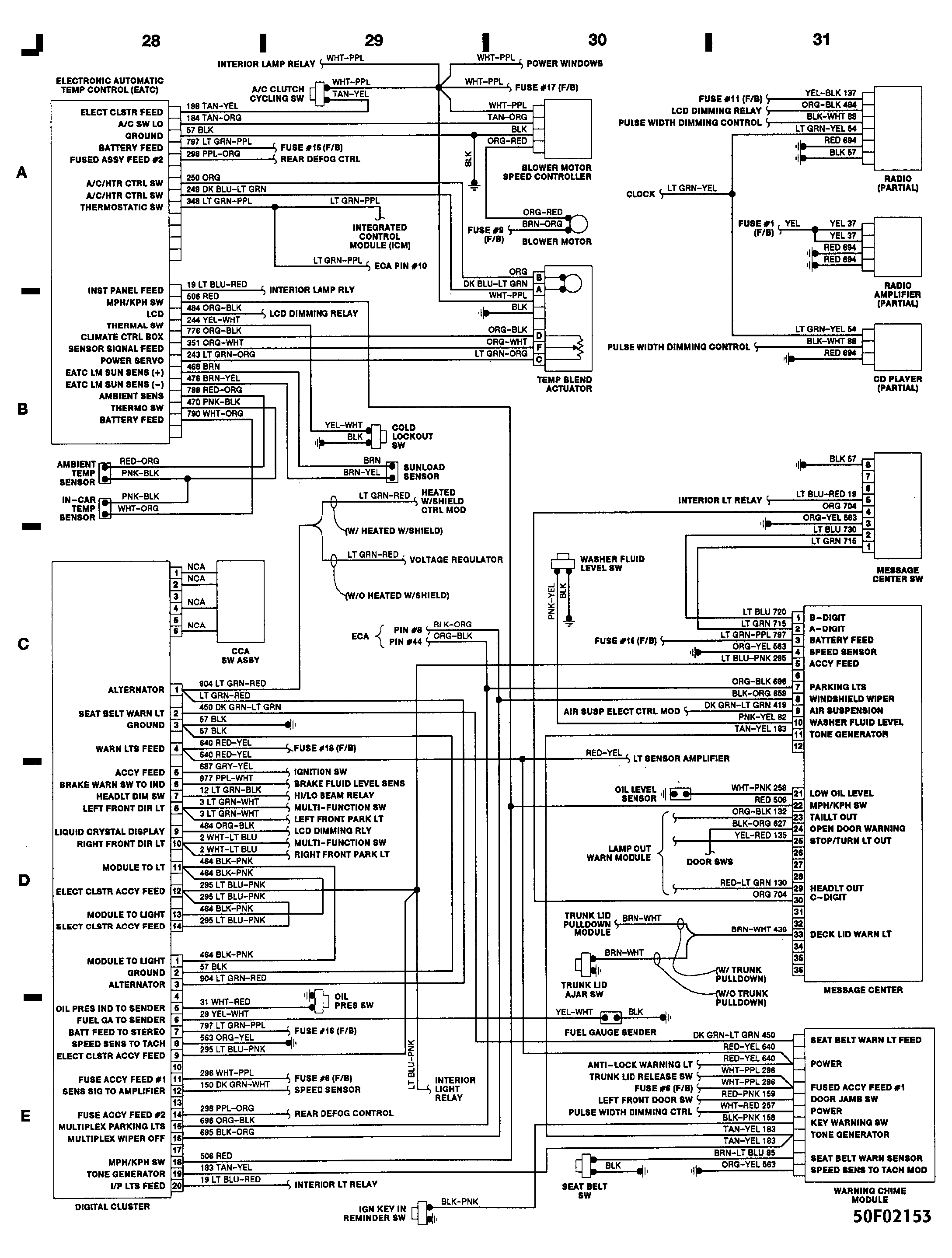

Fig 8: A/C & Digital Cluster

Fig 9: Power Doors & Accessories

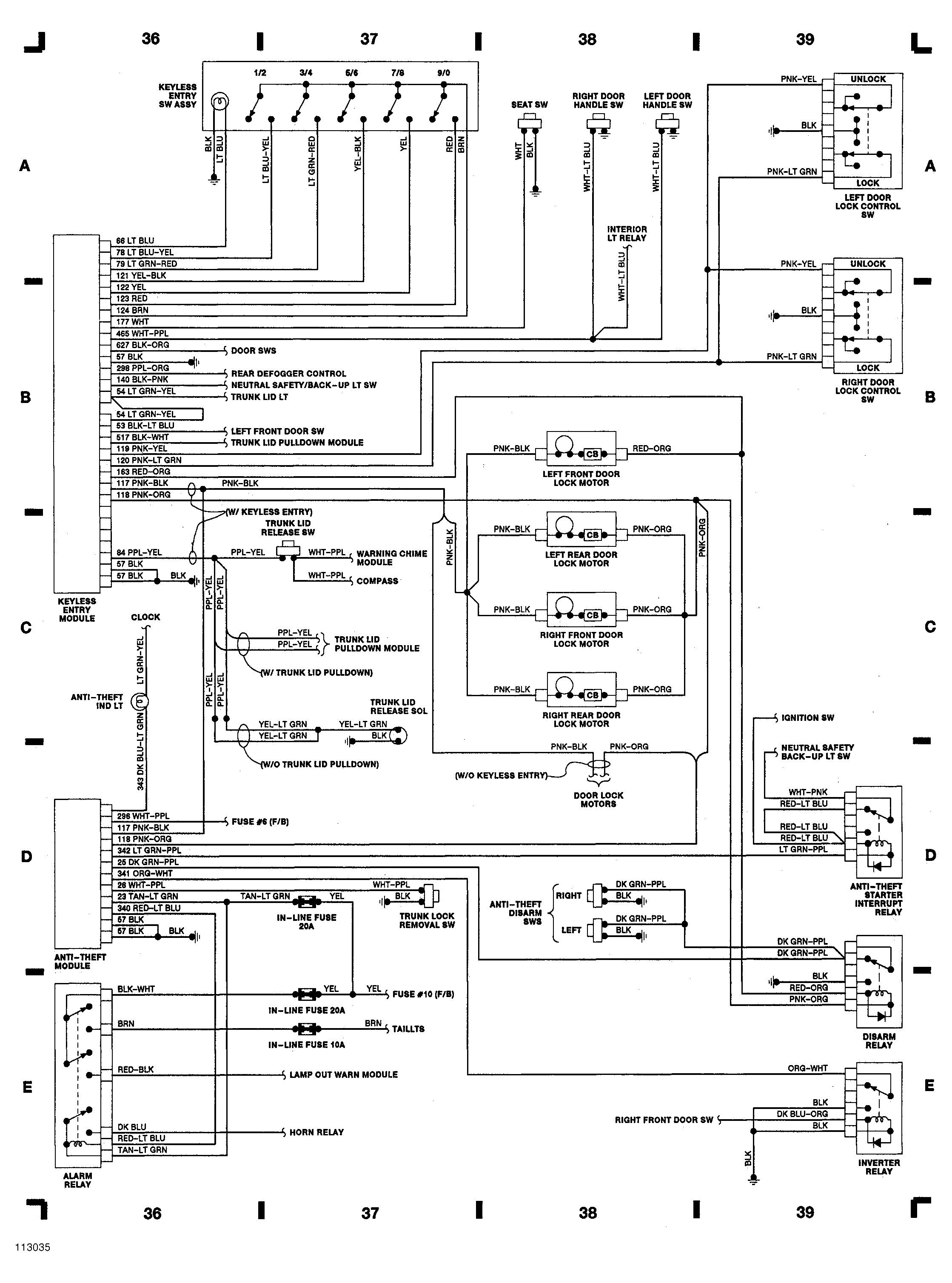

Fig 10: Anti-Theft System

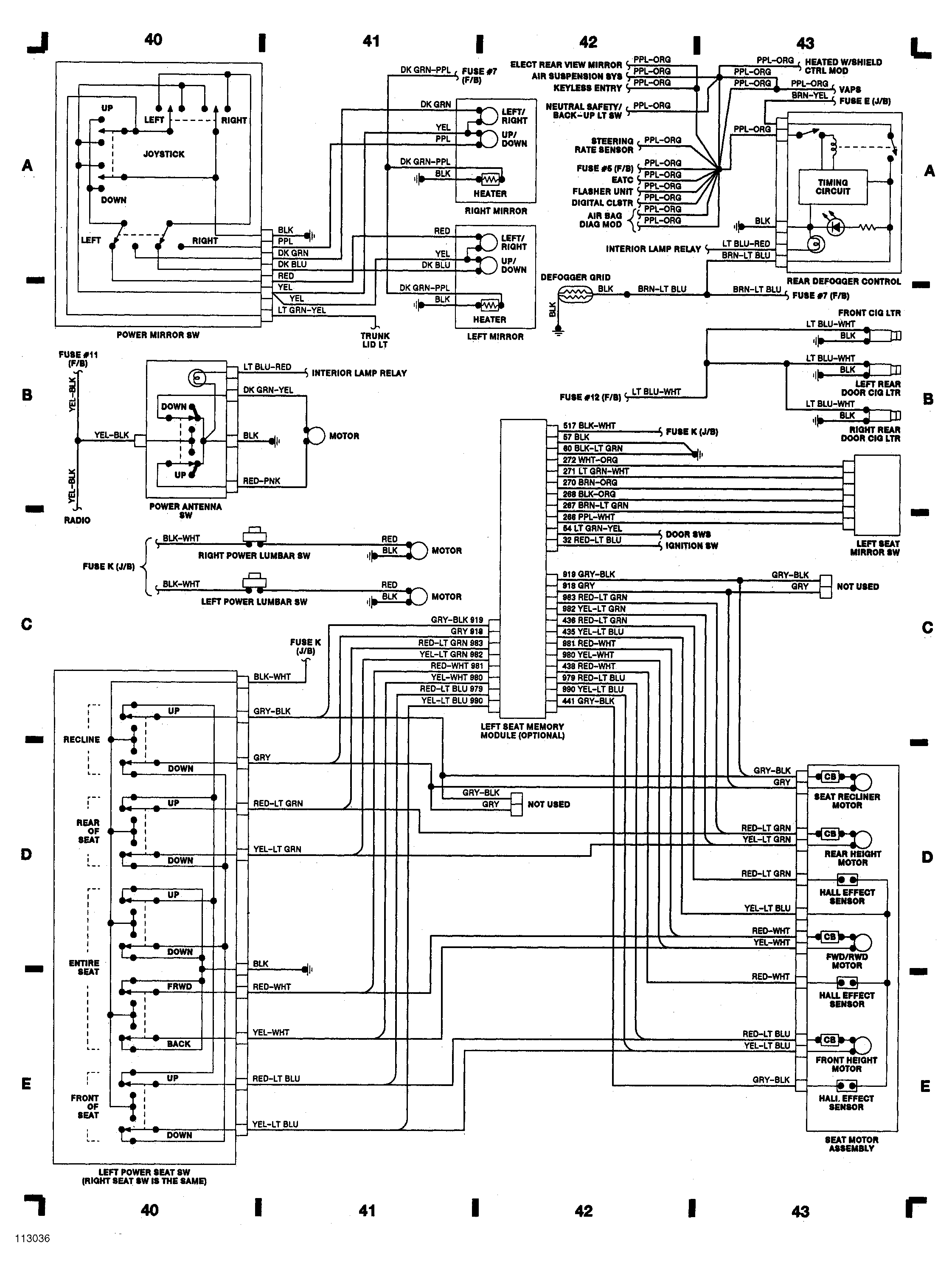

Fig 11: Power Mirrors & Power Seats

Fig 12: Passenger Compartment & Taillights
