5.0L V8 - VIN [F] & 5.0L Ho V8 - VIN [M]: Lubrication: Overview

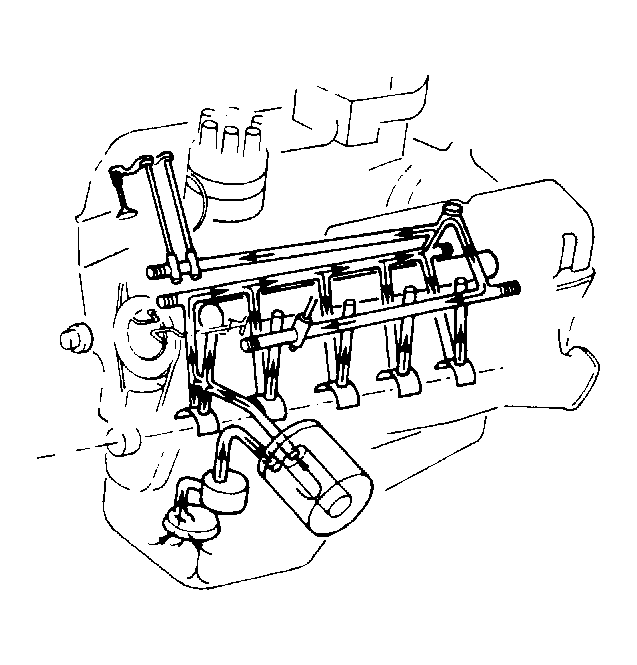

System has force feed with rotor type oil pump. Pressure regulator valve is located in oil pump body and is not adjustable. All oil from pump flows through full flow oil filter before entering the engine. See Figure . From oil filter, oil flows to main oil gallery located on right side of camshaft to lubricate engine components.

Normal oil pressure is 40-60 psi (2.8-4.2 kg/cm² ) at 2000 RPM.
