Instrument Cluster: Installation

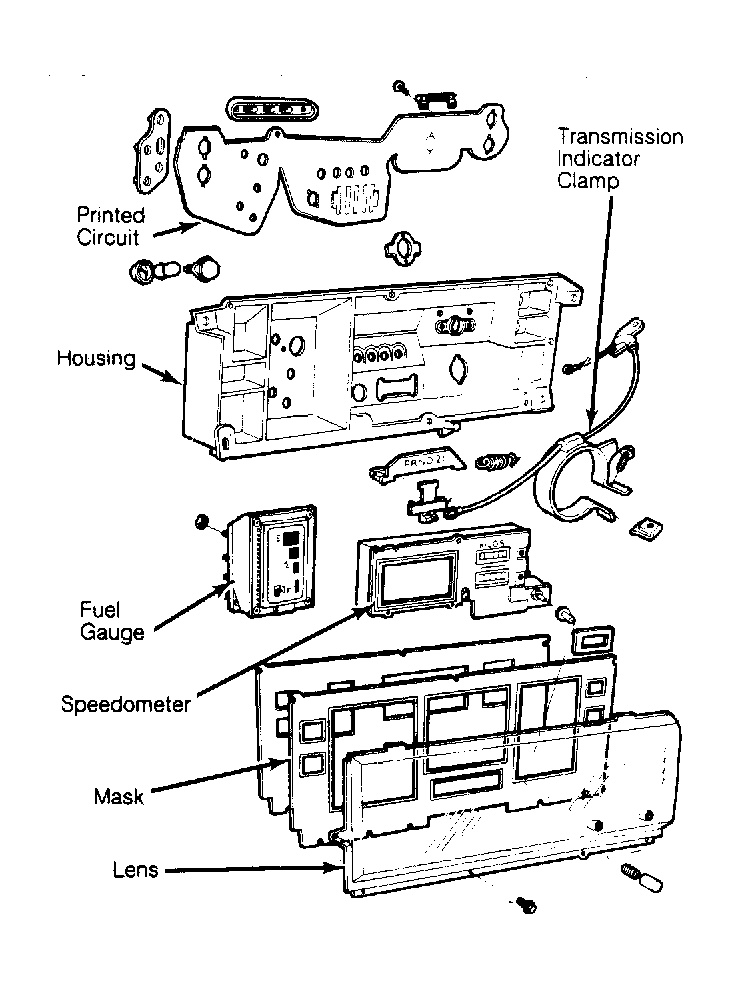

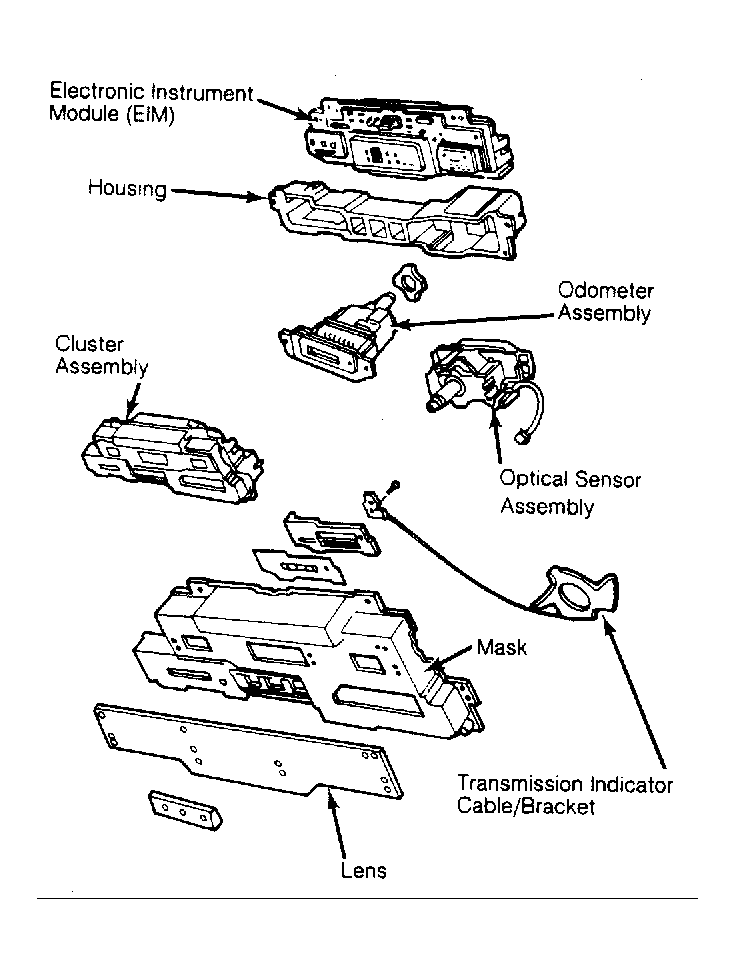

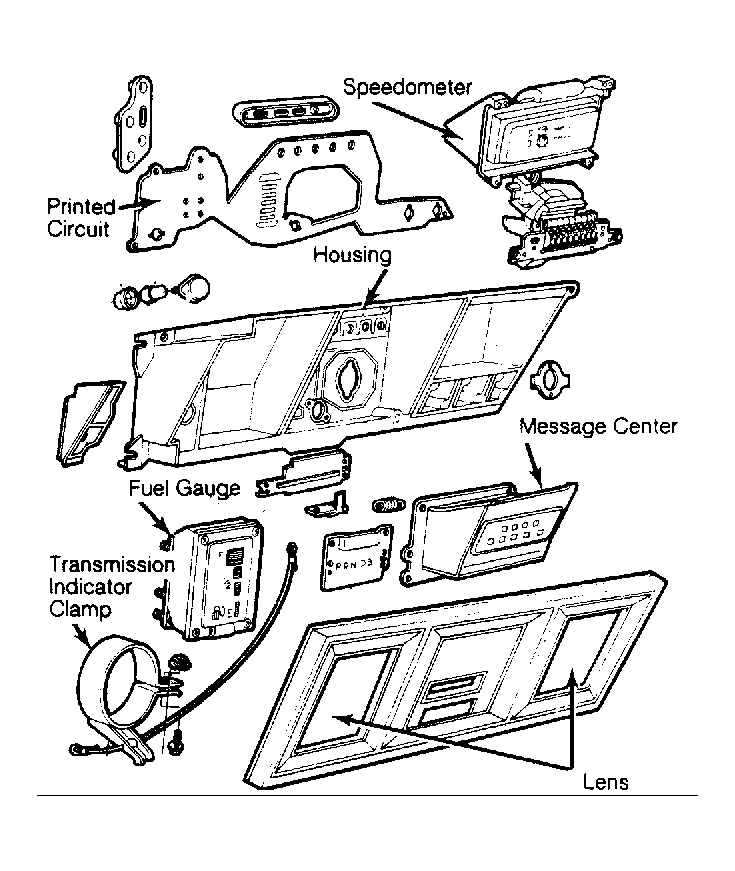

- On Continental, Cougar, Thunderbird and Mark VII, connect wiring harness, position cluster on instrument panel and install retaining screws. On LTD, Marquis and Town Car, lubricate speedometer cable head, position cluster on instrument panel and connect speedometer cable and wiring. Install cluster retaining screws.
- On Continental, Cougar, Thunderbird and Mark VII, connect shift cable to steering column. On LTD, Crown Victoria, Grand Marquis and Town Car, place transmission indicator clamp on steering column and fit cable loop over pin.
- Place transmission in "D" and rotate clamp on column until indicator covers both calibration dots on cluster. Tighten clamp screw. Replace instrument panel trim covers and steering column cover. Connect battery ground.
