Electrical Diagrams

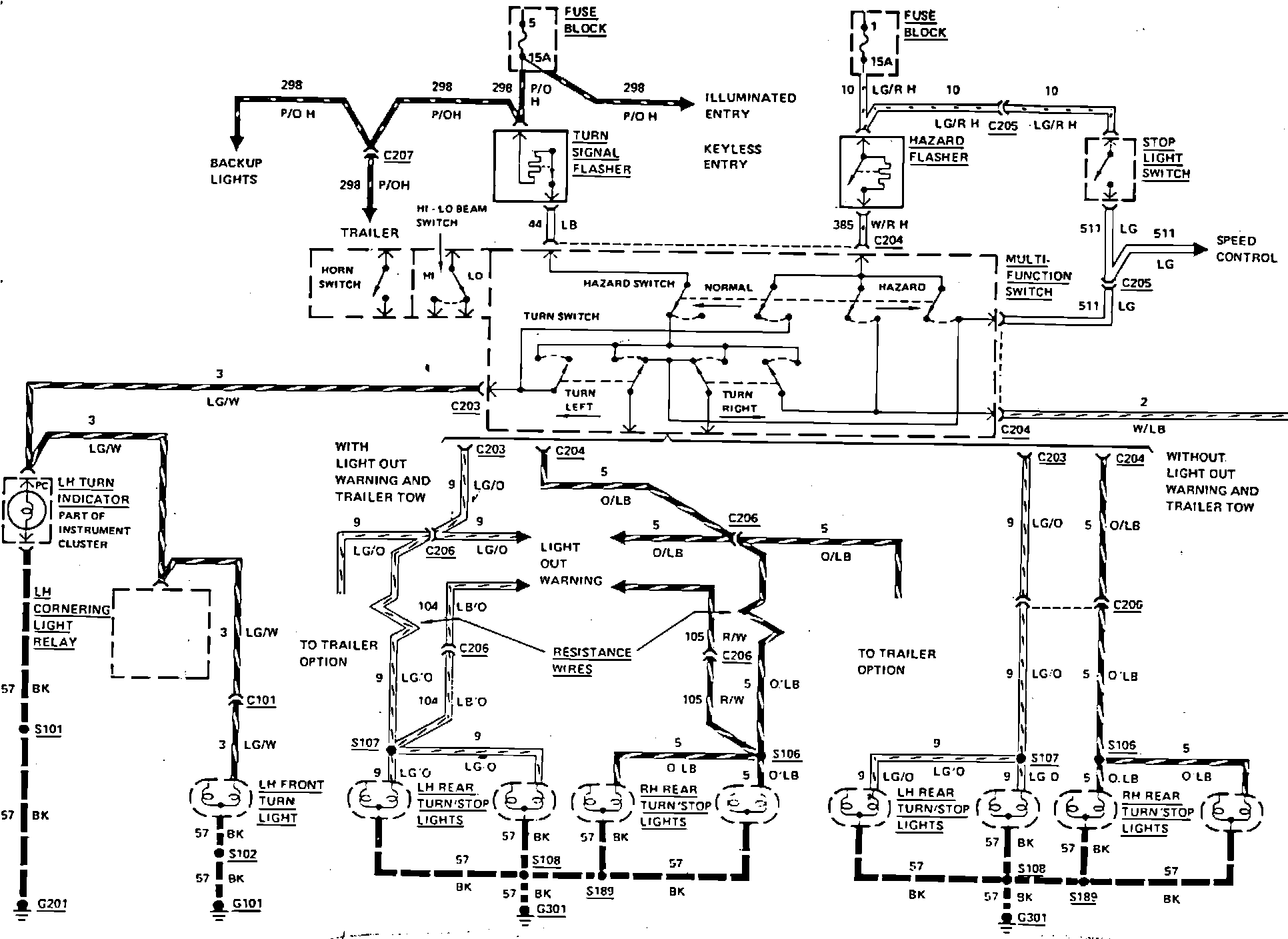

Fig. 174 Stop, turn & hazard lamp wiring circuit (Part 1 of 2). 1983 Mark VI & 1983-84 Town Car:



Fig. 174 Stop, turn & hazard lamp wiring circuit (Part 2 of 2). 1983 Mark VI & 1983-84 Town Car:
