Piston Pins

Piston pins are replaced using arbor press and suitable pilots and drivers. See Fig 1. Pins are a press fit in bore.

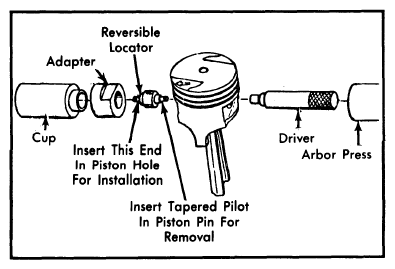

Fig 1: Tool Layout for Removing and Installing Piston Pin
G09318400Courtesy of FORD MOTOR CO.
