Cylinder Head: Installation

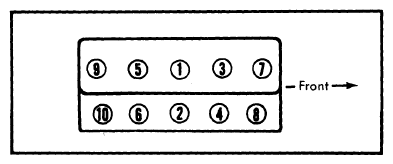

Clean old gasket material from cylinder head and block. Position head gasket over dowels and onto block. Install cylinder head. Install bolts and tighten in 3 steps to specifications, following sequence in Fig 1.
CYLINDER HEAD TIGHTENING SPECIFICATIONS (FT. LBS.)
| Step No. | 255" & 302" | 351" |
|---|---|---|
| Step 1 | 55-65 | 85 |
| Step 2 | 65-72 | 95 |
| Step 3 | 105-112 |
