Piston Pins

Piston pins are replaced using arbor press and suitable pilots and drivers. See Fig 1. Pins are a press fit in bore.

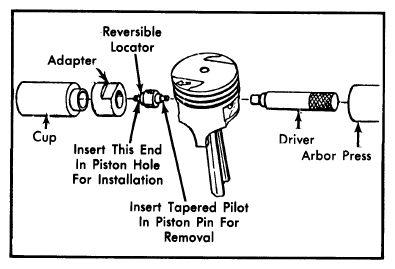

Fig 1: Tool Layout For Removing And Installing Piston Pin
G09328311Courtesy of FORD MOTOR CO.
