Cylinder Head: Installation

Clean old gasket material from cylinder head and block. Position head gaskets over dowels and onto block. Install cylinder head. Install bolts and tighten in two steps to specification, following sequence shown in Fig 1.

CYLINDER HEAD TIGHTENING SPECIFICATIONS

Engine Ft. Lbs. Step 1 Ft. Lbs. Step 2
302" 55-65 65-72
351" W 95-105 105-112
351" M & 400" 75 95-105

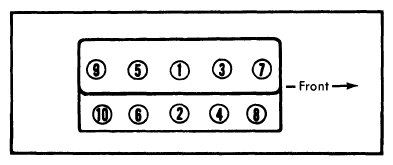

Fig 1: Cylinder Head Tightening Sequence For All Engines
G09328305Courtesy of FORD MOTOR CO.
