Wiring Diagrams

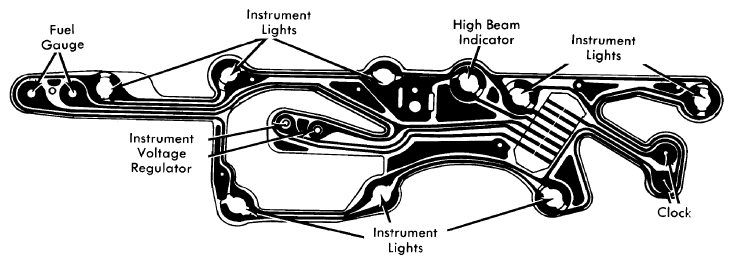

Fig 1: Lincoln Continental Mark V Instrument Cluster
G09308896Courtesy of FORD MOTOR CO.

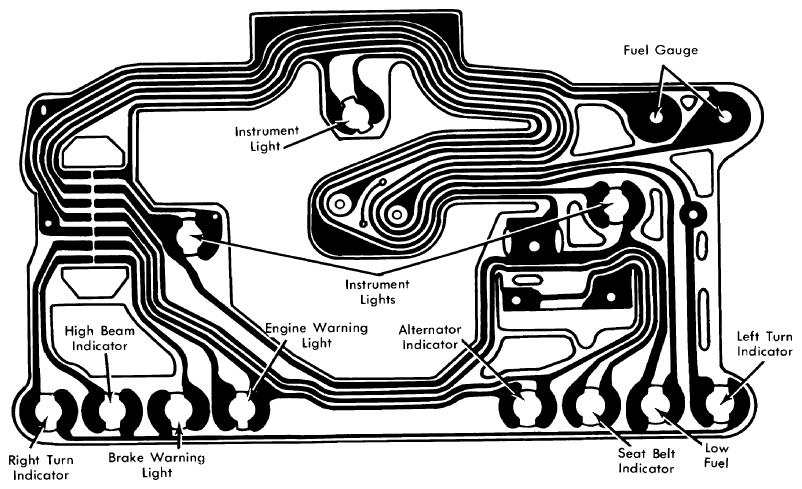

Fig 2: Lincoln Continental Instrument Cluster
G09308895Courtesy of FORD MOTOR CO.

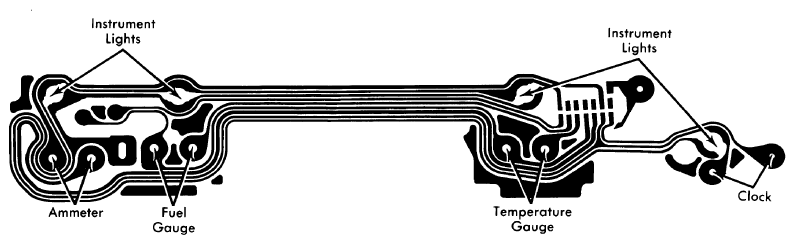

Fig 3: Lincoln Continental Lower Instrument Cluster
G09308897Courtesy of FORD MOTOR CO.

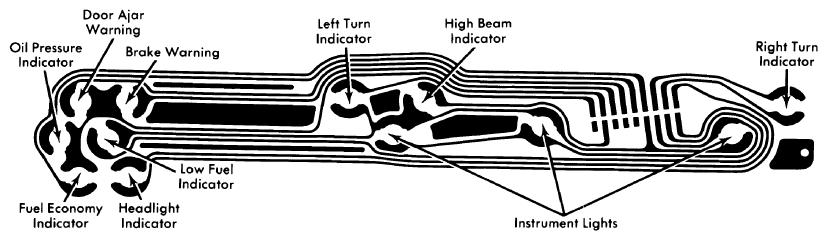

Fig 4: Lincoln Continental Upper (Speedometer) Instrument Cluster
G09308898Courtesy of FORD MOTOR CO.
