All Other Engines

Intake No. 1, 4, 8. Exhaust No. 1, 3, 7.

1. 3) Rotate crankshaft 180° clockwise from point "A" so that point "B" is opposite pointer. Check following valve clearances:

Intake No. 2, 5, 6. Exhaust No. 4, 5, 8.

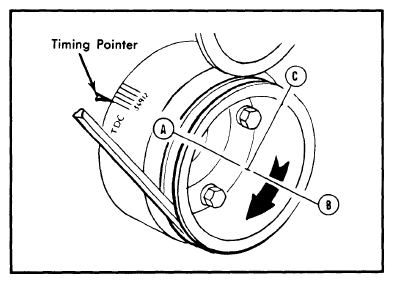

Fig 1: Different Positions to Place Crankshaft Damper When Making Hydraulic Valve Lifter Adjustment

Courtesy of FORD MOTOR CO.
