Cylinder Head: Installation

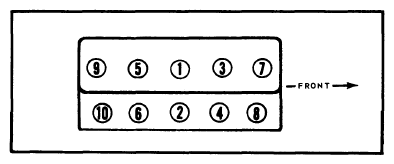

Clean old gasket material from cylinder head and block. Position head gasket on block and install cylinder head. Install bolts and tighten in three steps to specification in sequence shown in illustration.
Cylinder Head Tightening Specifications
| Engine | Ft. Lbs. Step 1 | Ft. Lbs. Step 2 | Ft. Lbs. Step 3 |
|---|---|---|---|
| 302" | 50 | 60 | 65-72 |
| 351" W | 85 | 95 | 105-115 |
| 351"M, 400 | 55 | 75 | 95-105 |
