Home >> Lincoln >> 1978 >> Versailles >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> 302", 351" & 400" V8 Engines >> Crankshaft & Rod Bearings >> Main & Connecting Rod Bearings >> Removal

Main & Connecting Rod Bearings: Removal

Remove connecting rod cap after ensuring caps are marked for identification to rod assembly. Use suitable tool (6331) in oil hole of crankshaft to remove upper half of main bearing by rotating crankshaft in direction of engine rotation. Replace main bearings one at a time.

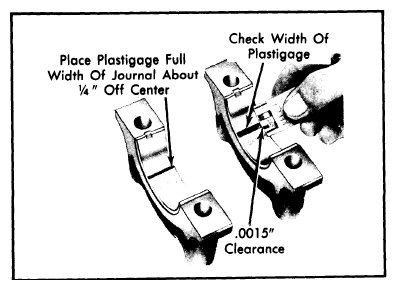

Fig 1: Using Plastigage to Check Bearing Clearance
G09327825Courtesy of FORD MOTOR CO.
