Removal & Installation

Crank engine until timing marks are positioned properly (see Fig 1). Remove camshaft sprocket cap screw, washers and fuel pump eccentric. Slide both sprockets and timing chain forward and remove them as an assembly.

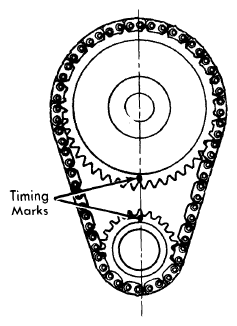

Fig 1: Timing Chain Sprocket Alignment
Courtesy of FORD MOTOR CO.
To install, position timing chain on sprockets with timing marks aligned (see Fig 1). Slide sprockets and timing chain onto engine as an assembly. Install fuel pump eccentric, washers and sprocket cap screw. Tighten bolt and oil timing chain.
