Pinto & Bobcat

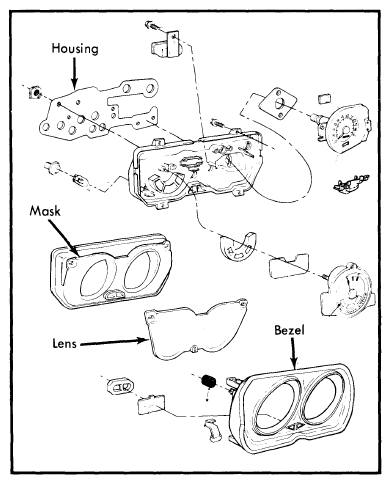

Remove two screws retaining upper and lower half of steering column shroud and remove lower half of shroud. Loosen forward steering column attaching nuts. Loosen rearward column attaching nuts about 1/2". Disconnect printed circuit and tachometer connectors. Remove speedometer cable. Remove four screws retaining cluster and pull cluster out along angle of steering column. If equipped with optional gauge cluster, remove two screws retaining optional cluster to instrument panel. Remove housing from the front. Disconnect printed circuit plug. Remove cluster from rear through main cluster opening. To install, reverse removal procedure.
