Wiring Diagrams

Fig 1: Ford Motor Co. 4-Way Electric Seat Control Wiring Diagram for Granada & Monarch (Versailles 4-Way Seat Similar)
G09308326Courtesy of FORD MOTOR CO.

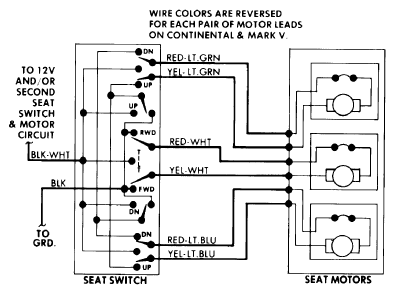

Fig 2: Ford Motor Co. 6-Way Electric Seat Control Wiring Diagram
G09308330Courtesy of FORD MOTOR CO.
