Wiring Diagrams

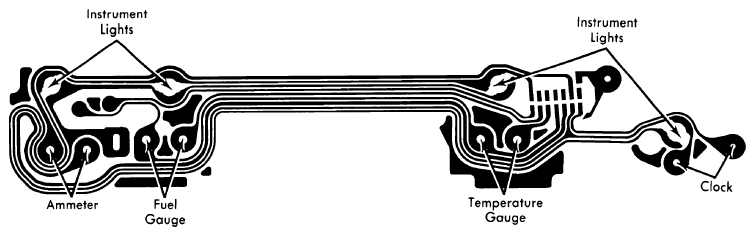

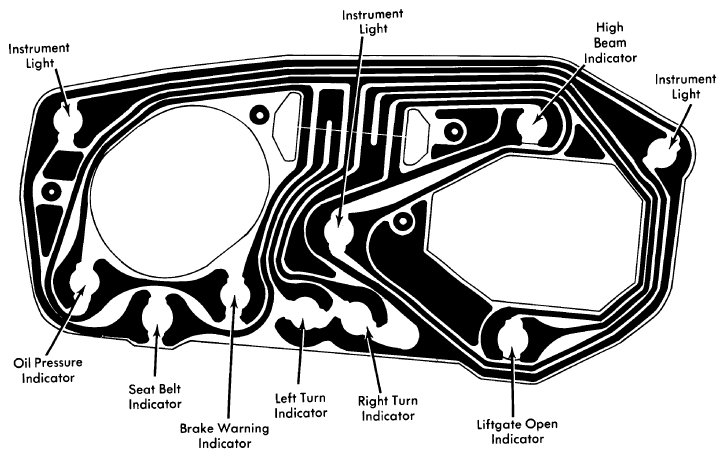

Fig 1: Pinto & Bobcat without Tachometer - Used on Fuel and Speedometer Instrument Cluster

Courtesy of FORD MOTOR CO.

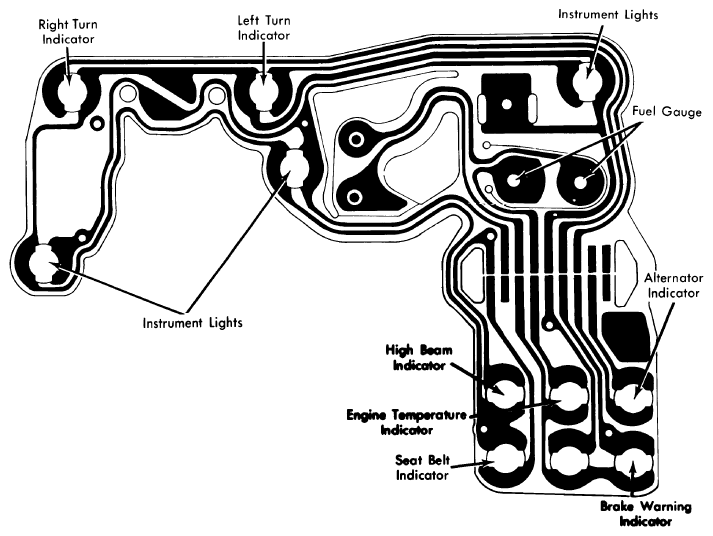

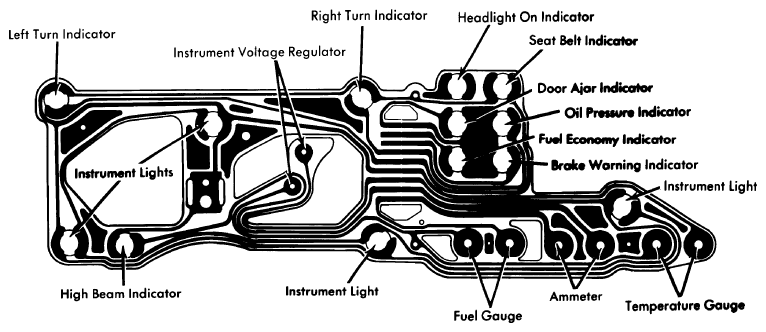

Fig 2: Pinto & Bobcat with Tachometer - Used on Tachometer and Speedometer Instrument Cluster

Courtesy of FORD MOTOR CO.

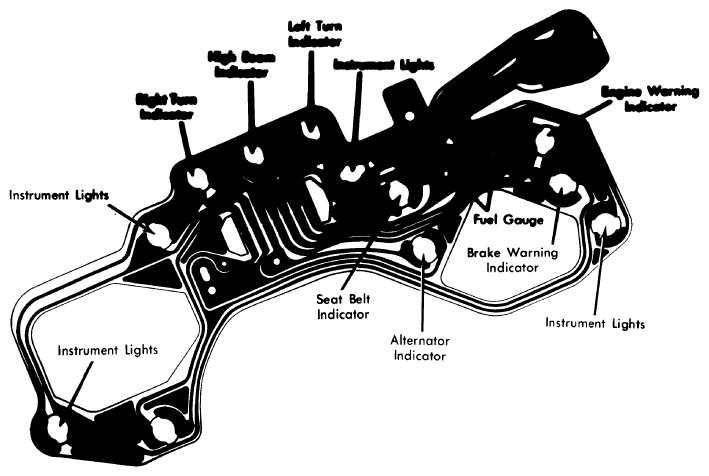

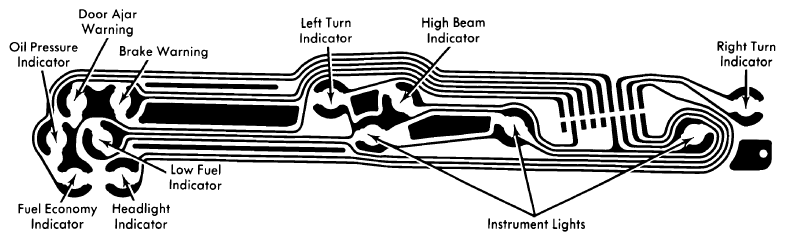

Fig 3: Pinto & Bobcat with Tachometer - Used on Fuel, Amp and Temperature Gauge Instrument Cluster

Courtesy of FORD MOTOR CO.

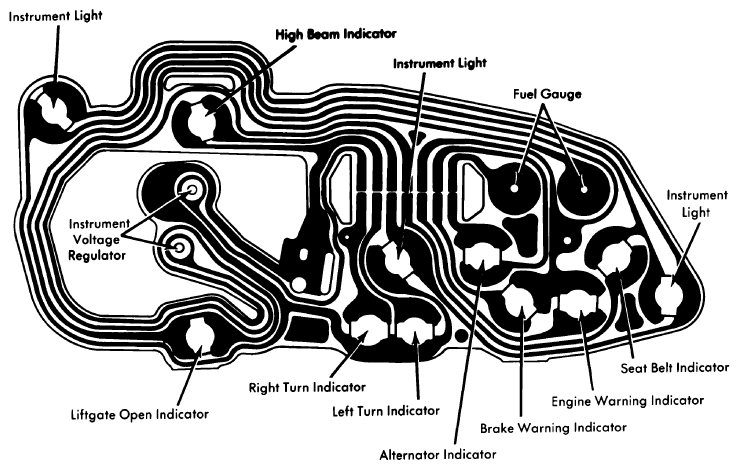

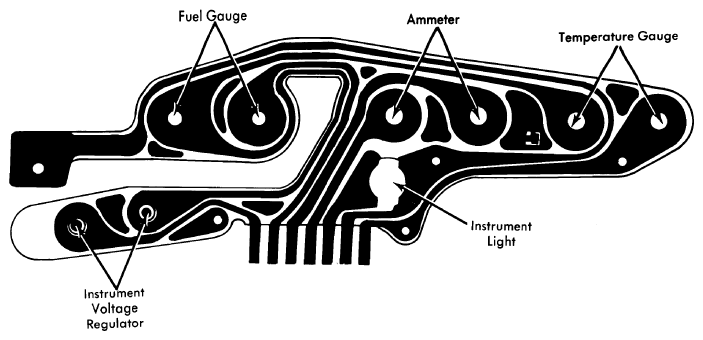

Fig 4: Mustang Instrument Cluster

Courtesy of FORD MOTOR CO.

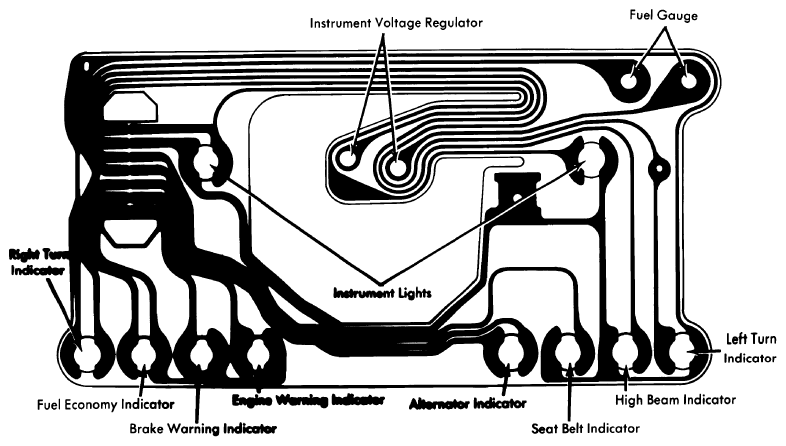

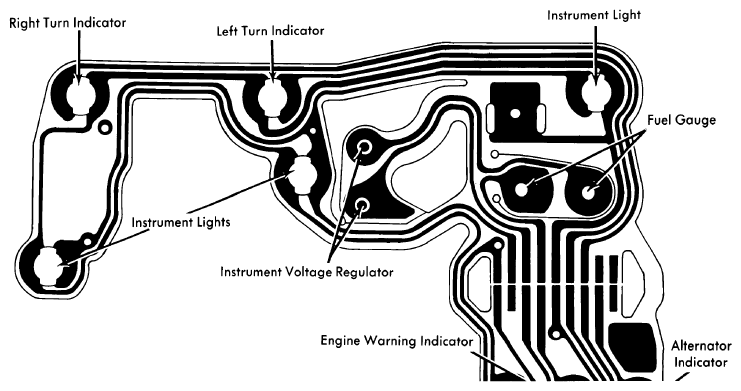

Fig 5: Granada Instrument Cluster

Courtesy of FORD MOTOR CO.

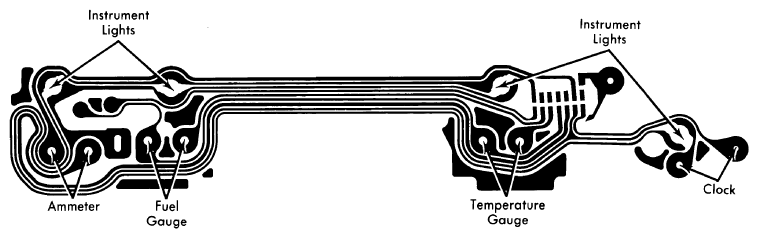

Fig 6: Fairment And Zephyr Instrument Cluster

Courtesy of FORD MOTOR CO.

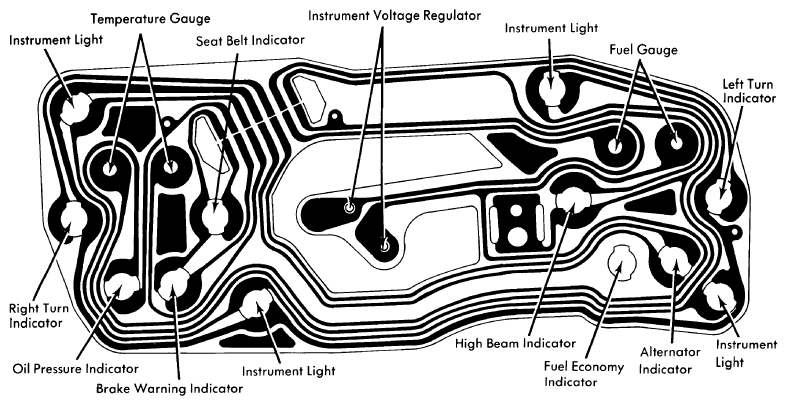

Fig 7: LTD II, Thunderbird, and Cougar Instrument Cluster

Courtesy of FORD MOTOR CO.

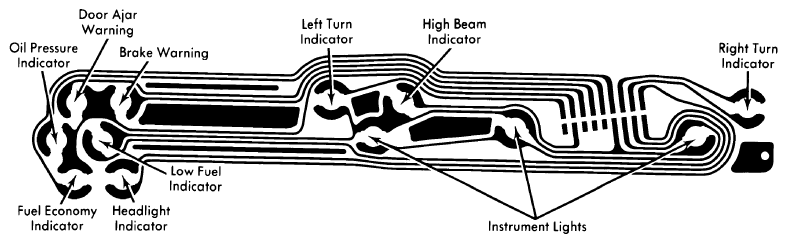

Fig 8: Ford and Mercury Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 9: Granada Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 10: Lincoln Continental Lower Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 11: Lincoln Continental Upper (Speedometer) Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 12: Lincoln Continental Lower Instrument Cluster

Courtesy of FORD MOTOR CO.

Fig 13: Lincoln Continental Upper (Speedometer) Instrument Cluster

Courtesy of FORD MOTOR CO.
