Wiring Diagrams

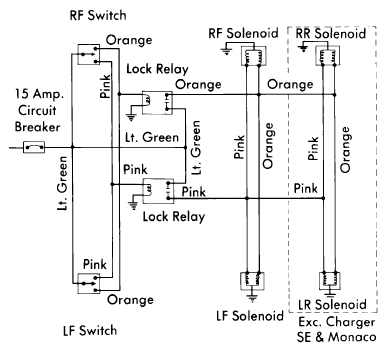

Fig 1: Chrysler Corp. Electric Door Lock Wiring Diagram

Courtesy of NOT AVAILABLE

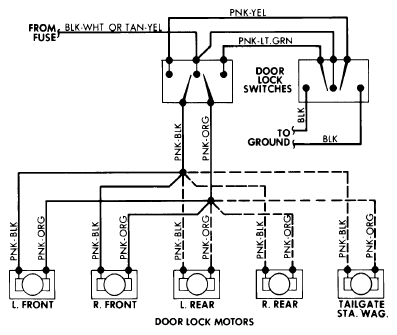

Fig 2: Ford Motor Co. Electric Door and Tailgate Locks Wiring Diagram for Ford, Mercury, Thunderbird, Cougar XR-7, Mark V & Continental

Courtesy of NOT AVAILABLE

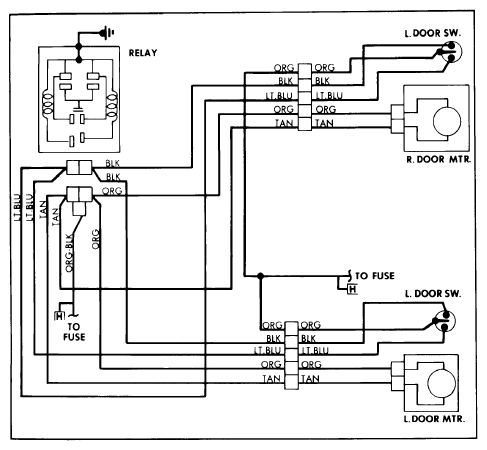

Fig 3: Ford Motor Co. Electric Door and Tailgate Locks Wiring Diagram for Granada, Monarch, LTD II, Versailles & Cougar (Exc. XR-7)

Courtesy of NOT AVAILABLE

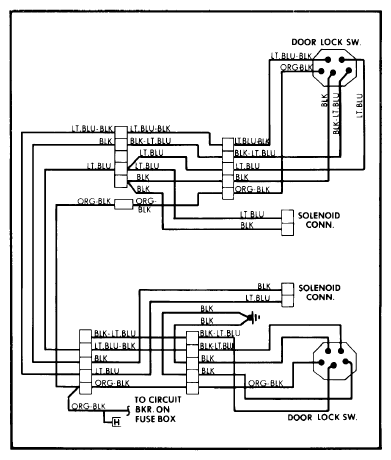

Fig 4: General Motors Solenoid Actuated Door Lock Wiring Diagram for Nova, Phoenix, Omega, Skylark & Camaro

Courtesy of NOT AVAILABLE

Fig 5: General Motors Solenoid Actuated Door Lock Wiring Diagram for Firebird

Courtesy of NOT AVAILABLE

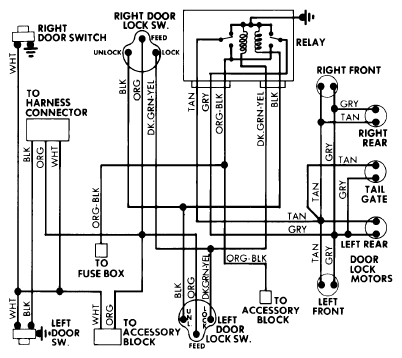

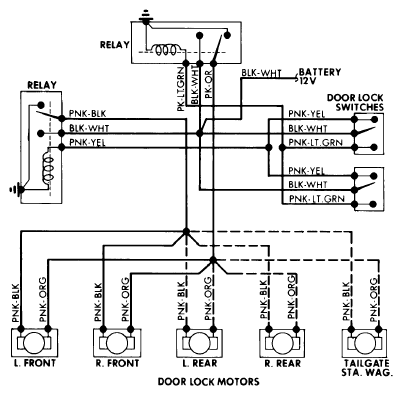

Fig 6: General Motors Motor Actuated Door Lock Wiring Diagram for All Models and for Station Wagons with Both Electric Door Locks and Electric Tailgate Locks

Courtesy of NOT AVAILABLE

Fig 7: Chevrolet, Oldsmobile & Pontiac Station Wagon Electric Tailgate Lock Wiring Diagram for Models not Equipped with Electric Door Locks

Courtesy of NOT AVAILABLE

Fig 8: Buick Station Wagon Electric Tailgate Lock Wiring Diagram for Models not Equipped with Electric Door Locks

Courtesy of NOT AVAILABLE

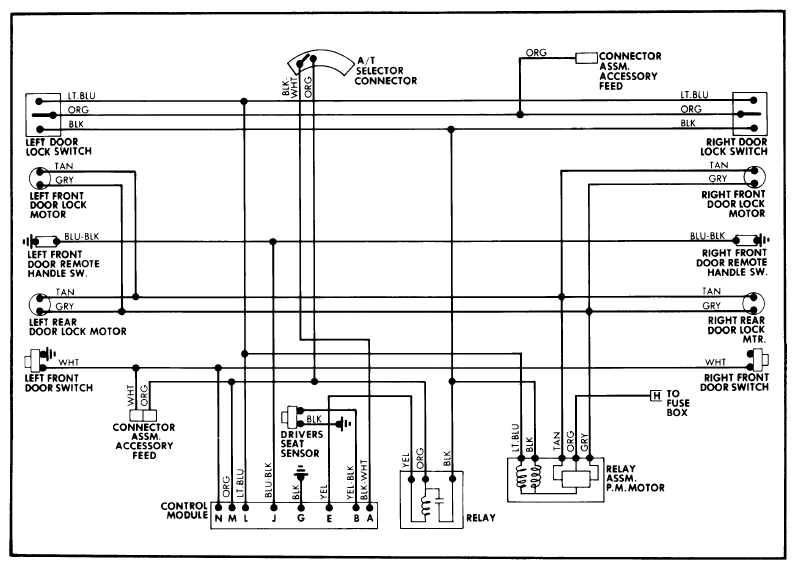

Fig 9: Buick Electra and Riviera Automatic Locking Electric Door Lock Wiring Diagram

Courtesy of NOT AVAILABLE

Fig 10: Cadillac Automatic Locking Electric Door Lock Wiring Diagram

Courtesy of NOT AVAILABLE
