Wiring Diagrams

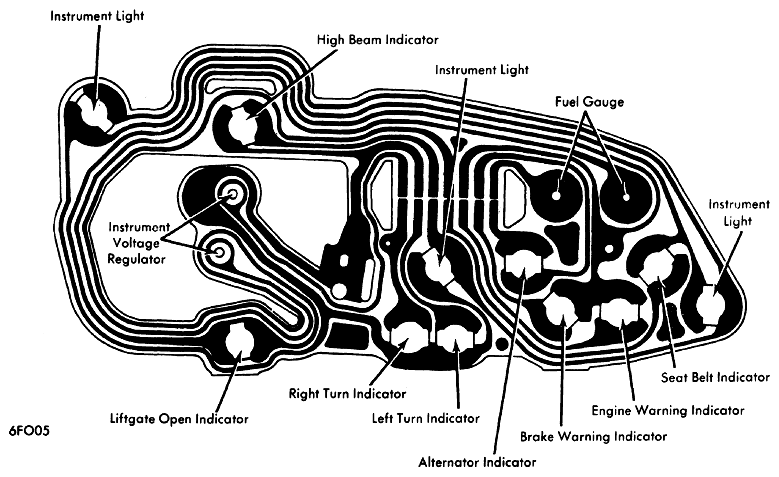

Fig 1: Pinto, Bobcat

G09306578

Courtesy of FORD MOTOR CO.

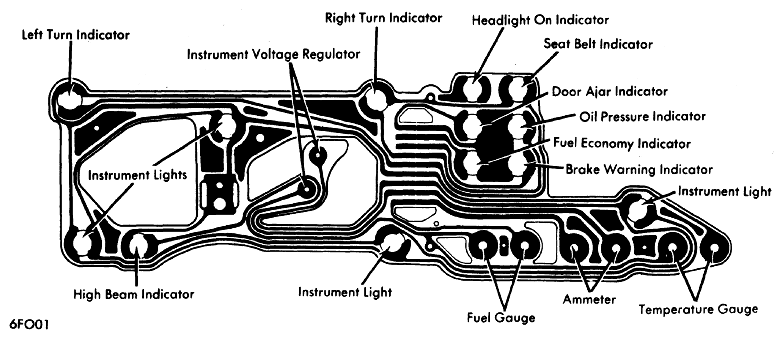

Fig 2: Mustang II

G09306579

Courtesy of FORD MOTOR CO.

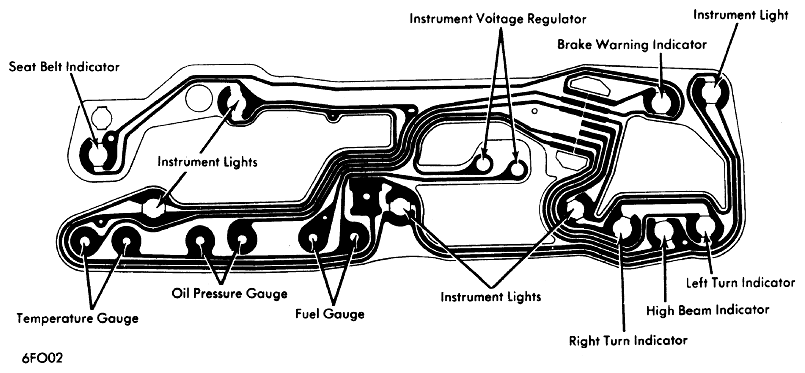

Fig 3: Torino, Montego, Cougar (With Gauges)

G09306580

Courtesy of FORD MOTOR CO.

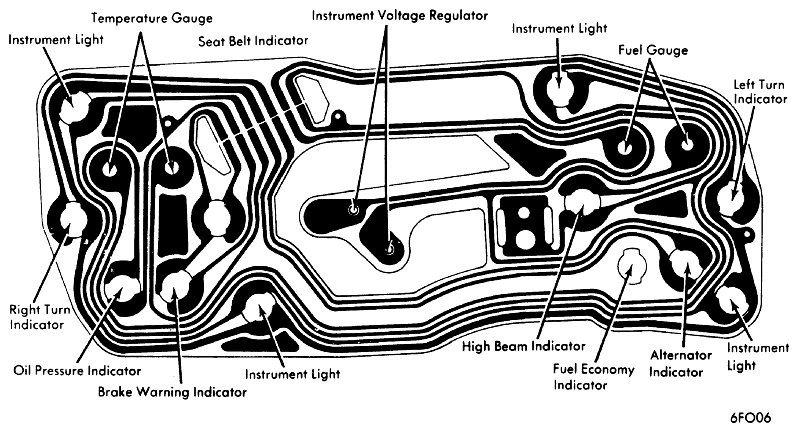

Fig 4: Torino, Montego & Elite (Without Gauges)

G09306581

Courtesy of FORD MOTOR CO.

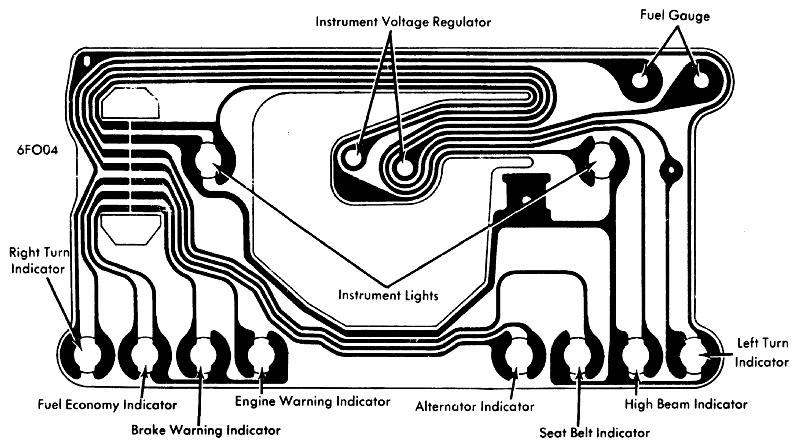

Fig 5: Ford, Mercury

G09306582

Courtesy of FORD MOTOR CO.

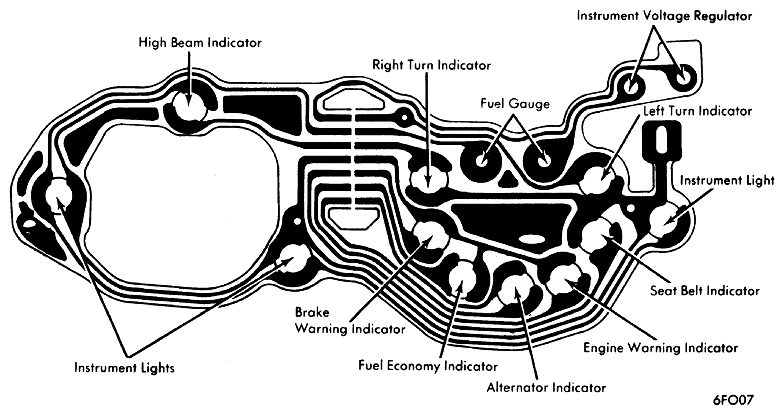

Fig 6: Maverick & Comet

G09306583

Courtesy of FORD MOTOR CO.

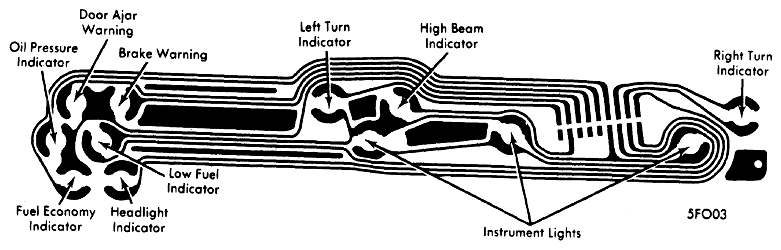

Fig 7: Lincoln (Upper)

G09306584

Courtesy of FORD MOTOR CO.

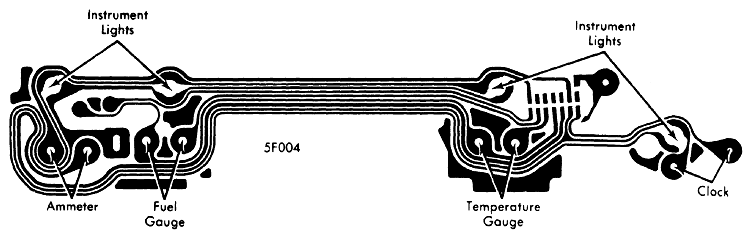

Fig 8: Lincoln (Lower)

G09306585

Courtesy of FORD MOTOR CO.

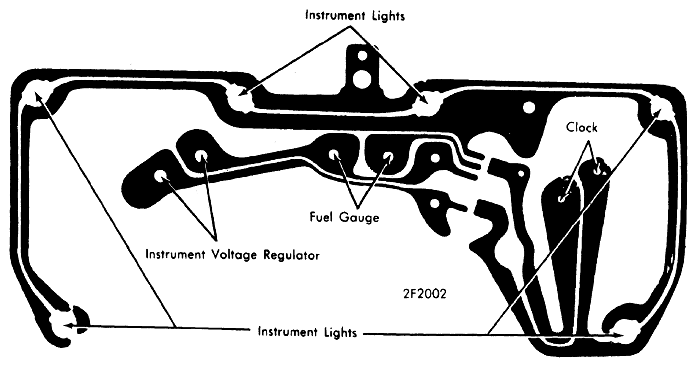

Fig 9: Thunderbird

G09306586

Courtesy of FORD MOTOR CO.

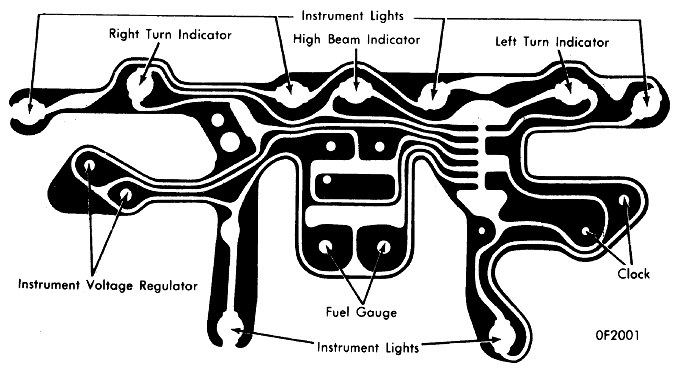

Fig 10: Continental Mark Iv

G09306587

Courtesy of FORD MOTOR CO.

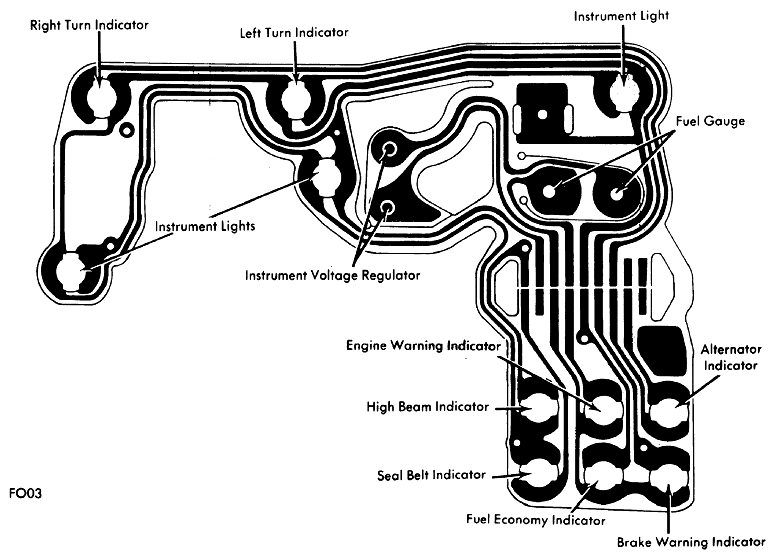

Fig 11: Granada, Monarch

G09306588

Courtesy of FORD MOTOR CO.
