Intake Manifold Installation

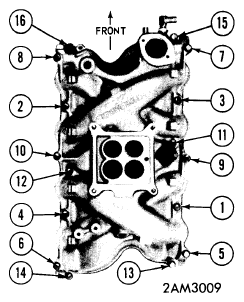

Torque bolts to specified torque in sequence shown in illustration.
| PISTONS, PINS, RINGS | ||||||
|---|---|---|---|---|---|---|
| Engine | PISTONS Clearance | PINS | RINGS | |||
| Piston Fit | Rod Fit | Rings | End Gap | Side Clearance | ||
| 429" & 460" | ||||||
| 1968-70 | .0014-.0022" | .0001-.0003" | Press Fit | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .010-.035" | Snug | ||||
| 1971-73 | .0014-.0022" | .0002-.0004" | Press Fit | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .015-.055" | Snug | ||||
| 429" BOSS | ||||||
| 1970 | .003-.0038" | .0003-.0005" | .0008" | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .010-.035" | Snug | ||||
| 429" Police, Cobra Jet & Super Cobra Jet | ||||||
| 1970 | .003-.0038" | .0001-.0003" | Press Fit | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .010-.035" | Snug | ||||
| 1971-73 | .0042-.005" | .0001-.0003" | Press Fit | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .010-.035" | Snug | ||||
| 460" | ||||||
| PI 1973 | .0034-.0042" | .0004-.0006" | Press Fit | 1 & 2 | .010-.020" | .002-.004" |
| 3 | .015-.055" | Snug | ||||
