Crankshaft & Camshaft Bearings

Lubricated through vertical passages from main oil gallery, which is fed directly from oil filter.

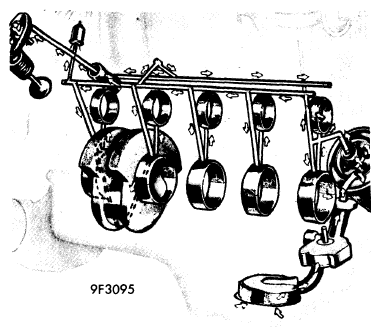

Fig 1: Engine Oiling System

G09324134

Courtesy of FORD MOTOR CO.
