Alternators - LEECE-NEVILLE 6000 & 6200 (40 & 53 Amp.) Series: Overhaul: Disassembly

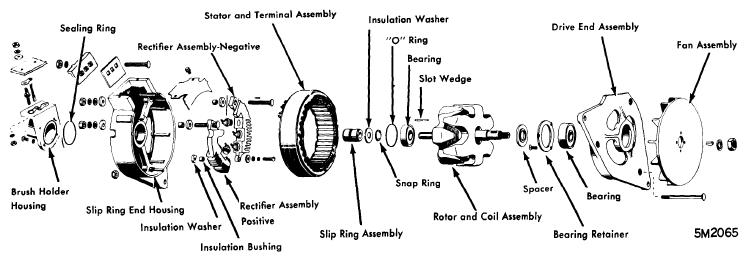

Remove pulley, fan, key, and spacer. Remove through bolts and the brushes. Separate drive end housing and rotor assembly from stator and housing. Remove drive end housing from rotor shaft using suitable puller or arbor press-Slip rings can be replaced using suitable pullers and arbor press. Press bearings out of end housings. Stator and diodes can be removed from end housing by removing terminal nuts and washers.
- Remove fan, pulley, key, and spacer. Remove brush holder housing from slip ring end housing. Remove three through bolts and elastic stop nuts, and tap a brass rod gently against rotor shaft to remove slip ring end housing and stator from rotor and drive end housing. Remove cover from terminal block, disconnect AC terminal leads, and separate stator from slip ring end housing.
- Use an arbor press or suitable puller to separate drive drive end housing from rotor and shaft. Remove bearings from each end housing.
