The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during intercooler assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
Refer to INITIALIZATION [11/2021 - ] |
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

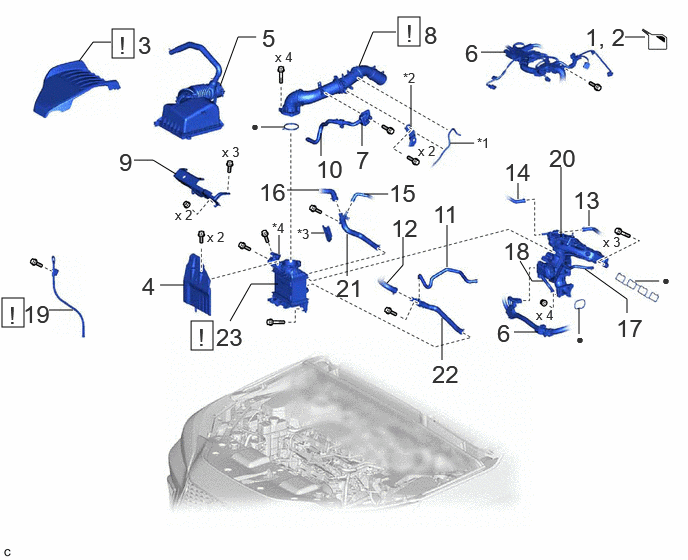

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DRAIN ENGINE COOLANT | - | - | See step 1 | - |
| 2 | DRAIN COOLANT (for Intercooler) | - | - | See step 2 | - |
| 3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | 12601B | See step 3 | - | - |
| 4 | NO. 2 ENGINE COVER SUB-ASSEMBLY | 12602D | - | - | - |
| 5 | AIR CLEANER CAP WITH AIR CLEANER HOSE | - | - | - | - |
| 6 | DISCONNECT ENGINE WIRE | 82121 | - | - | - |
| 7 | PURGE VALVE (PURGE VSV) | 25860D | - | - | - |
| 8 | AIR TUBE ASSEMBLY | 17360A | See step 8 | - | - |
| 9 | FUEL DELIVERY GUARD | 23825 | - | - | - |
| 10 | NO. 2 FUEL VAPOR FEED HOSE | 23827D | - | - | - |
| 11 | NO. 1 TURBO WATER HOSE | 16284 | - | - | - |
| 12 | NO. 1 INTERCOOLER COOLING WATER HOSE | 16551C | - | - | - |
| 13 | NO. 3 WATER BY-PASS HOSE | 16267 | - | - | - |
| 14 | NO. 5 WATER BY-PASS HOSE (Type A) | 16282F | - | - | - |
| 15 | NO. 4 TURBO WATER HOSE | 16287 | - | - | - |
| 16 | NO. 2 INTERCOOLER COOLING WATER HOSE | 16552C | - | - | - |
| 17 | NO. 4 WATER BY-PASS HOSE | 16281N | - | - | - |
| 18 | NO. 5 WATER BY-PASS HOSE (Type B) | 16282 | - | - | - |
| 19 | ENGINE OIL LEVEL DIPSTICK GUIDE | 11452 | See step 19 | - | - |
| 20 | INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY | - | - | - | - |
| 21 | NO. 7 INTERCOOLER COOLING WATER HOSE | 16557B | - | - | - |
| 22 | NO. 6 INTERCOOLER COOLING WATER HOSE | 16556C | - | - | - |
| 23 | INTERCOOLER ASSEMBLY | 17940D | See step 23 | - | - |
| *1 | VACUUM HOSE SUB-ASSEMBLY | *2 | AIR TUBE SUPPORT |
| *3 | INTERCOOLER PIPE PROTECTOR | *4 | NO. 2 TURBO PRESSURE SENSOR |
| • | Non-reusable part | - | - |
