On-Vehicle Inspection [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT INTAKE SYSTEM WARNING:
To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the ignition switch ON.

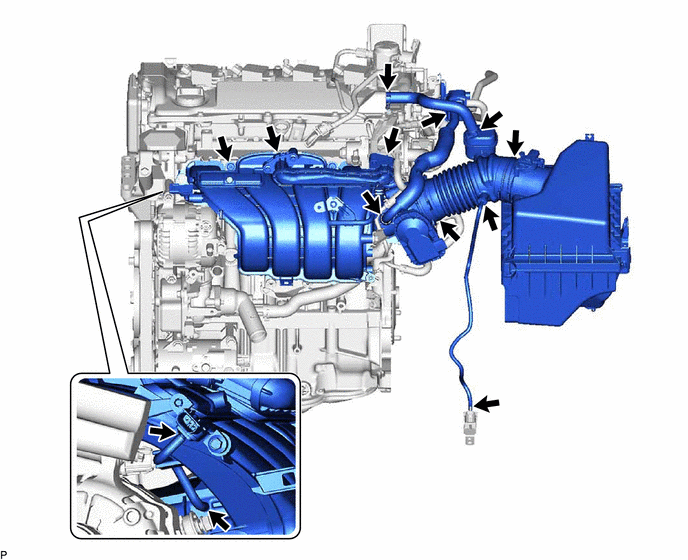

- Check that there are no vacuum leaks at the points shown in the illustration.
HINT:
Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.
Refer to INITIALIZATION [11/2021 - ]
- Check that there are no vacuum leaks at the points shown in the illustration.
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.
HINT:
Refer to INITIALIZATION [11/2021 - ]
- Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.
