Removal [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

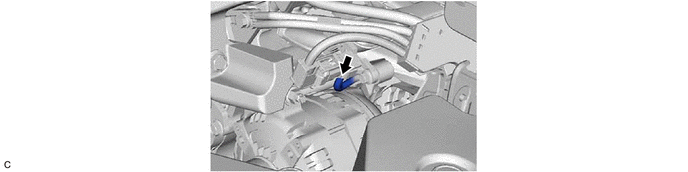

- DISCONNECT VACUUM HOSE
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

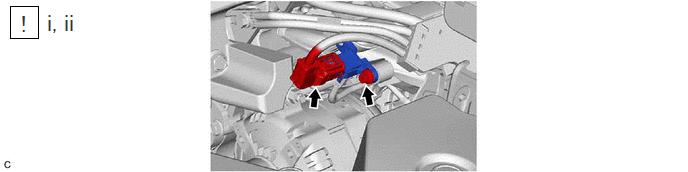

- REMOVE E.F.I. VACUUM SENSOR ASSEMBLY (MANIFOLD ABSOLUTE PRESSURE SENSOR)
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) connector.
- Using an 8 mm socket wrench, remove the bolt and E.F.I. vacuum sensor assembly (manifold absolute pressure sensor) from the intake manifold.
