Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (REMOVAL)

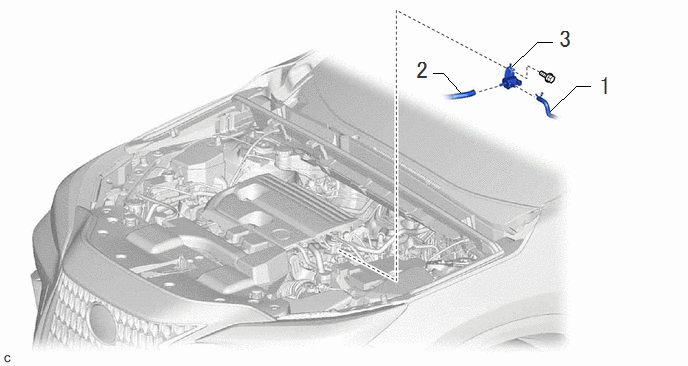

Fig 1: Purge Valve Removal Components
GTY1078507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 FUEL VAPOR FEED HOSE ASSEMBLY 23820 - - -
2 FUEL VAPOR FEED HOSE ASSEMBLY 23820 - - -
3 PURGE VALVE (PURGE VSV) 25860 - - -
