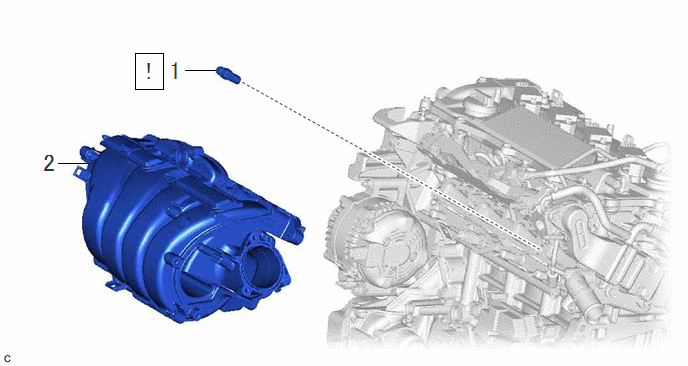

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) | 12204C | See step 1 | - | - |
| 2 | INTAKE MANIFOLD | 17111 | - | - | - |
NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]
