Inspection [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT FUEL TANK CAP ASSEMBLY
    1. Visually check that the fuel tank cap assembly and gasket are not deformed or damaged.
      GTY805960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Gasket

      If the result is not as specified, replace the fuel tank cap assembly.

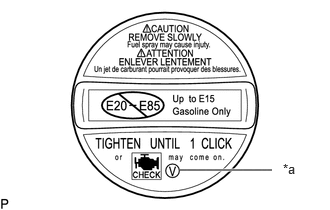

    2. Confirm that ID mark V is printed on the fuel tank cap assembly.
      GTY1052281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ID Mark
      WARNING:

      Make sure to use a fuel tank cap assembly that has the correct ID mark, or a malfunction may occur in the fuel system.
