Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. LOOSEN NO. 1 EGR PIPE SUB-ASSEMBLY

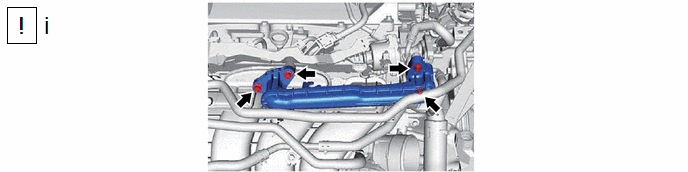

    1. GTY1079710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, loosen the 4 bolts of the No. 1 EGR pipe sub-assembly.

        HINT:

        • As the bolts of the No. 1 EGR pipe sub-assembly are only to be loosened, it is not necessary to replace the EGR inlet gasket and EGR valve adapter gasket.
        • If the No. 1 EGR pipe sub-assembly is removed, it is necessary to replace the EGR inlet gasket and EGR valve adapter gasket with new ones.
  2. LOOSEN EGR VALVE ASSEMBLY
    1. GTY1078021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, loosen the 2 bolts of the EGR valve assembly.
  3. INSTALL NO. 1 EGR COOLER GASKET
    1. GTY1077789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new No. 1 EGR cooler gasket to the EGR cooler assembly.
        NOTE:

        Make sure that the claws of the EGR cooler gasket are toward the EGR cooler assembly side.

  4. INSTALL EGR VALVE GASKET
    1. GTY1077820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw - -
      1. Install a new EGR valve gasket to the EGR cooler assembly.
        NOTE:

        Make sure that the claws of the EGR valve gasket are toward the EGR cooler assembly side.

  5. INSTALL EGR COOLER ASSEMBLY
    1. Fig 1: EGR Cooler Assembly Bolts And Nuts Tightening Sequence
      GTY1078928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt or Nut - -
      1. for Type A:

        Temporarily install the EGR cooler assembly to the cylinder head sub-assembly and EGR valve assembly with the 3 bolts and 2 nuts.

      2. for Type A:

        Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

      3. for Type B:

        Temporarily install the EGR cooler assembly to the cylinder head sub-assembly and EGR valve assembly with the 2 bolts and 3 nuts.

      4. for Type B:

        Tighten the 2 bolts and 3 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

  6. CONNECT NO. 4 WATER BY-PASS HOSE
  7. CONNECT NO. 3 WATER BY-PASS HOSE
  8. TIGHTEN EGR VALVE ASSEMBLY
    1. GTY1078021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, tighten the 2 bolts of the EGR valve assembly.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  9. TIGHTEN NO. 1 EGR PIPE SUB-ASSEMBLY
    1. GTY1079711Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an 8 mm socket wrench, tighten the 4 bolts of the No. 1 EGR pipe sub-assembly.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  10. INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE
    Refer to PROCEDURE - Step 5
  11. CONNECT NO. 2 VENTILATION HOSE
    Refer to PROCEDURE - Step 6
  12. CONNECT VACUUM HOSE
  13. INSTALL INLET AIR CLEANER ASSEMBLY
    Refer to PROCEDURE - Step 8
  14. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 48
  15. INSTALL RADIATOR UPPER AIR GUIDE PLATE
  16. ADD ENGINE COOLANT (for Engine)

    Refer to PROCEDURE - Step 5

  17. INSPECT FOR COOLANT LEAK (for Engine)
    Refer to PROCEDURE - Step 1
  18. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 4
