COMPONENTS (INSTALLATION)

Fig 1: Fuel Tank Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	NO. 4 FUEL TANK CUSHION	77654A	-	-	-
2	NO. 3 FUEL TANK CUSHION	77653A	-	-	-
3	NO. 2 FUEL TANK CUSHION	77652A	-	-	-
4	NO. 1 FUEL TANK CUSHION	77652	-	-	-
5	FUEL RETURN VENT TUBE SUB-ASSEMBLY	77016H	See step 5	-	-
6	INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY	77209F	-	-	-
7	FUEL TANK SUB-ASSEMBLY	77100U	See step 7	-	-
8	FUEL TANK FILLER PIPE ASSEMBLY	77210	See step 8	-	-
9	FUEL TANK BREATHER TUBE	-	See step 9	-	-
10	CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY	77209F	See step 10	-	-
11	FUEL TANK EVAP/VENT TUBE SUB-ASSEMBLY	-	See step 11	-	-
12	NO. 1 FUEL TANK PROTECTOR	77641A	-	-	-
13	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY	77606	-	-	-

*1	FUEL TANK BAND SUB-ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
*	For use with SST	•	Non-reusable part

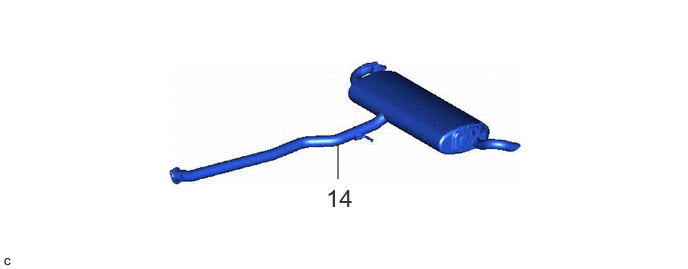

Fig 2: Fuel Tank Installation Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
14	TAIL EXHAUST PIPE ASSEMBLY	17430	-	-	-

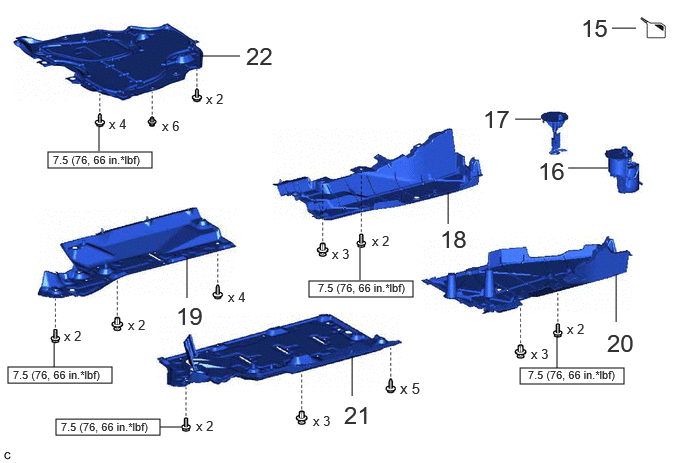

Fig 3: Fuel Tank Installation Components With Torque Specifications (3 Of 3)

Callout - Procedure		Part Name Code
15	ADD FUEL	-	-	-	-
16	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	77020A	-	-	-
17	FUEL TANK VENT TUBE ASSEMBLY	77010	-	-	-
18	NO. 1 FLOOR UNDER COVER	58398F	-	-	-
19	FRONT FLOOR COVER RH	58165C	-	-	-
20	NO. 2 FLOOR UNDER COVER	58399D	-	-	-
21	FRONT FLOOR COVER LH	58166A	-	-	-
22	NO. 2 ENGINE UNDER COVER ASSEMBLY	51420	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque
