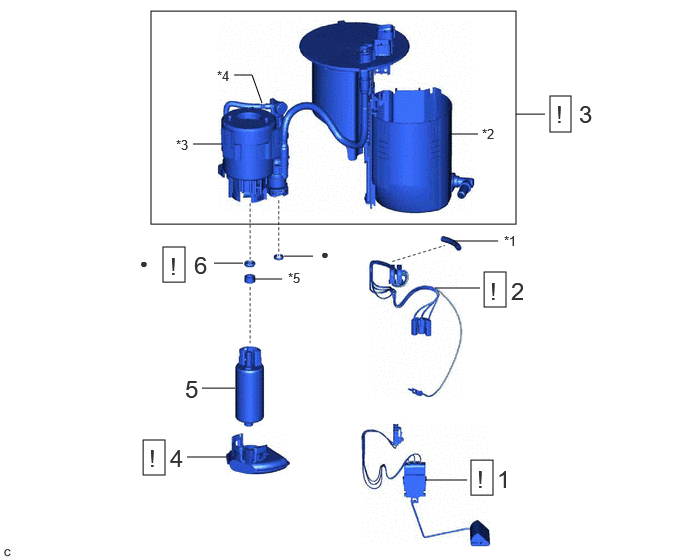

COMPONENTS (DISASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL SENDER GAUGE ASSEMBLY | 83320 | See step 1 | - | - |
| 2 | FUEL PUMP HARNESS | 77785 | See step 2 | - | - |
| 3 | FUEL SUCTION PLATE SUB-ASSEMBLY | 77024A | See step 3 | - | - |
| 4 | FUEL PUMP FILTER | 23217D | See step 4 | - | - |
| 5 | FUEL PUMP | 23221 | - | - | - |
| 6 | O-RING | - | See step 6 | - | - |
| *1 | HARNESS PROTECTOR | *2 | FUEL SUB-TANK |
| *3 | FUEL FILTER | *4 | FUEL PUMP FILTER HOSE |
| *5 | FUEL PUMP SPACER | - | - |
| • | Non-reusable part | - | - |
NOTE:
| *a | Tube |
- Do not disconnect the tube shown in the illustration when disassembling the fuel suction tube with pump and gauge assembly. Doing so will cause reassembly of the fuel suction tube with pump and gauge assembly to be impossible as the tube is pressed into the fuel suction plate sub-assembly.
- When replacing the fuel filter, replace it together with the fuel suction plate sub-assembly.
