COMPONENTS (INSTALLATION)

Fig 1: Fuel Pump ECU Installation Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	FUEL PUMP CONTROL ECU BRACKET	89573	-	-	-
2	FUEL PUMP CONTROL ECU	89571	-	-	-

N.m (kgf/cm, ft.lbf): Specified torque

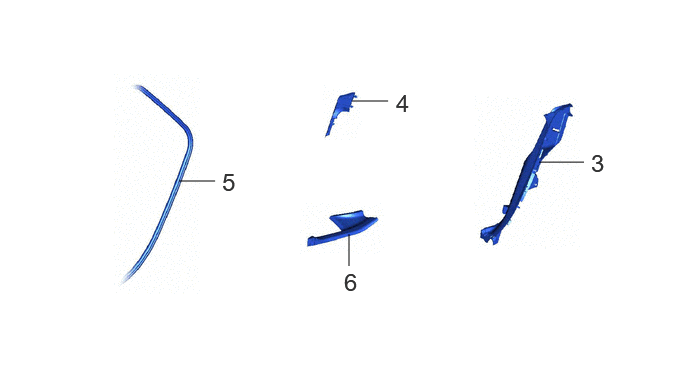

Fig 2: Fuel Pump ECU Installation Components (2 Of 3)

Callout - Procedure		Part Name Code
3	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
4	NO. 1 SIDE TRIM BASE COVER LH	62525D	-	-	-
5	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
6	REAR DOOR SCUFF PLATE LH	67918A	-	-	-

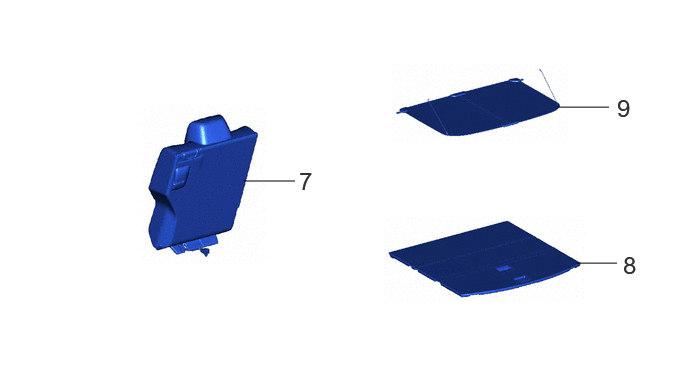

Fig 3: Fuel Pump ECU Installation Components (3 Of 3)

Callout - Procedure		Part Name Code
7	REAR SEAT ASSEMBLY	-	-	-	-
8	DECK BOARD ASSEMBLY	58410B	-	-	-
9	TONNEAU COVER ASSEMBLY	64910J	-	-	-
