Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 2 FUEL PRESSURE SENSOR HOLDER

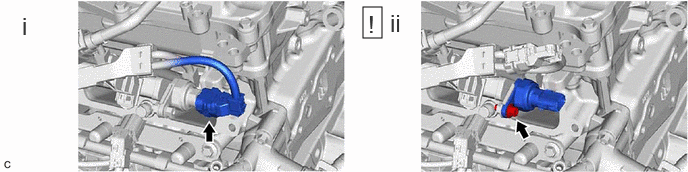

    1. GTY1075645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the No. 2 fuel pressure sensor connector.
      2. Using an 8 mm socket wrench, remove the bolt and No. 2 fuel pressure sensor holder from the fuel delivery pipe sub-assembly.
  3. REMOVE NO. 2 FUEL PRESSURE SENSOR
    1. GTY1181159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
