Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 FUEL PRESSURE SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

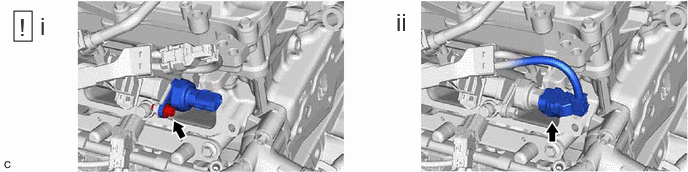

*1	No. 2 Fuel Pressure Sensor	*2	No. 2 Fuel Pressure Sensor Holder
*a	Flat	-	-

Install a new No. 2 fuel pressure sensor to the No. 2 fuel pressure sensor holder as shown in the illustration.

INSTALL NO. 2 FUEL PRESSURE SENSOR HOLDER

Using an 8 mm socket wrench, install the No. 2 fuel pressure sensor holder to the fuel delivery pipe sub-assembly with the bolt.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Connect the No. 2 fuel pressure sensor connector.

INSTALL FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY
Refer to INSTALLATION [11/2021 - ]
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing a No. 2 fuel pressure sensor.
  Refer to INITIALIZATION [11/2021 - ]
