NOTE:

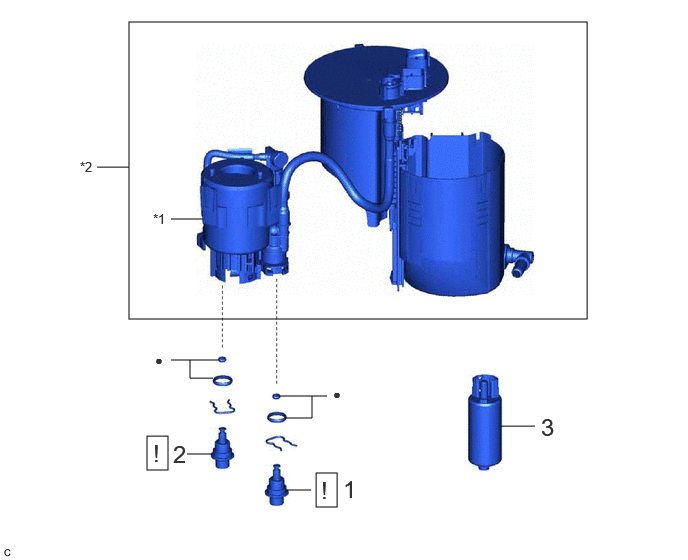

The fuel main valve assembly (for High Pressure) and No. 2 fuel main valve assembly (for Low Pressure) have identification marks (part numbers). If the parts are installed in the incorrect positions, the engine may stall. Therefore, make sure to install the parts in the correct positions.
| *1 | Fuel Main Valve Assembly (for High Pressure) | *2 | No. 2 Fuel Main Valve Assembly (for Low Pressure) |
| *a | Identification Mark (Part Number) | - | - |
HINT:
| A | Fuel Main Valve Assembly (for High Pressure) | 23070-36*** |
| B | No. 2 Fuel Main Valve Assembly (for Low Pressure) | 23070-31*** |
