Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel (engine room side) pump assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
  • Replacement of fuel (engine room side) pump assembly
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Replacement of EGR valve assembly
  • Gas leak from exhaust system is repaired
Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.
Refer to INITIALIZATION [11/2021 - ]
WARNING:
  • Never perform work on fuel system components near any possible ignition sources.
    GTY657996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Vaporized fuel could ignite, resulting in a serious accident.
  • Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
    GTY657995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  • Sparks could cause vaporized fuel to ignite, resulting in a serious accident.
  • To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.
    GTY613008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
  • To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) battery terminal.

    Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

  • This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

    Refer to PRECAUTION [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
Lighting System (EXT) Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System
Stop and Start System Idle the engine for approximately 5 to 60 minutes or drive the vehicle until stop and start control is permitted. Refer to PRECAUTION [11/2021 - 03/2023] , or refer to PRECAUTION [03/2023 - 03/2024] , or refer to PRECAUTION [03/2024 - ]
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link
E-latch System
  • Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2021 - ]
Power Back Door System Reset back door close position Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -


COMPONENTS (REMOVAL)

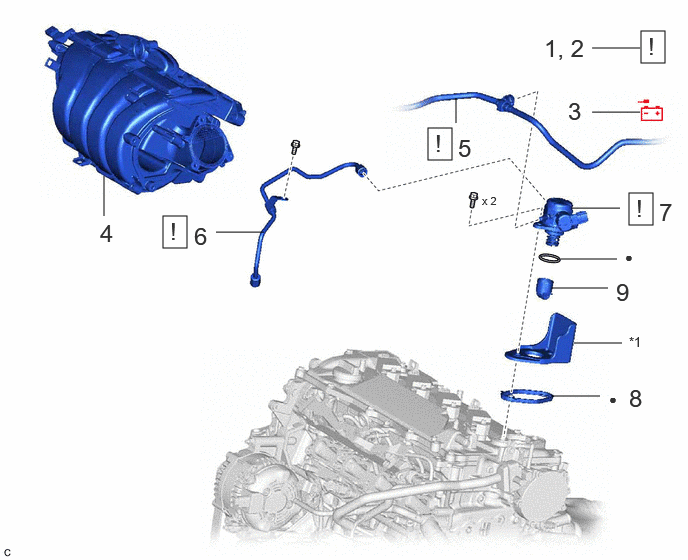

Fig 1: Fuel Pump (For High Pressure) Removal Components
GTY1076382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 PRECAUTION - See step  1 - -
2 DISCHARGE FUEL SYSTEM PRESSURE - See step  2 - -
3 DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL - - - -
4 INTAKE MANIFOLD 17111 - - -
5 FUEL TUBE SUB-ASSEMBLY 23910A See step  5 - -
6 NO. 1 FUEL PIPE SUB-ASSEMBLY 23801P See step  6 - -
7 FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY 23100X See step  7 - -
8 FUEL PUMP SPACER GASKET 23224D - - -
9 FUEL PUMP LIFTER ASSEMBLY 23470 - - -
*1 FUEL PUMP FLANGE - -
Non-reusable part - -
