Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [11/2021 - ]
  2. DISCHARGE FUEL SYSTEM PRESSURE

    Refer to PRECAUTION [11/2021 - ]

  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  4. REMOVE INTAKE MANIFOLD

    Refer to REMOVAL [11/2021 - ]

  5. REMOVE NO. 1 FUEL PRESSURE SENSOR HOLDER
    WARNING:

    To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

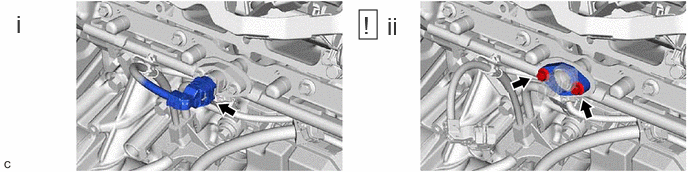

    1. GTY1075518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the fuel pressure sensor connector.
      2. Using an 8 mm socket wrench, remove the 2 bolts and No. 1 fuel pressure sensor holder from the fuel delivery pipe.
  6. REMOVE FUEL PRESSURE SENSOR

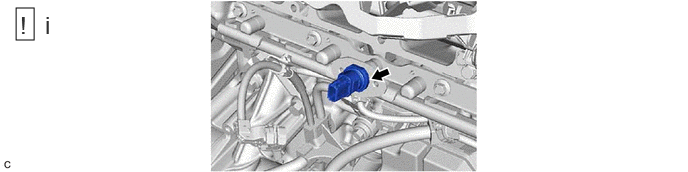

    1. GTY1074931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the fuel pressure sensor from the fuel delivery pipe.
        NOTE:
        • Pull and remove the fuel pressure sensor in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.
        • After removing the fuel pressure sensor, remove any O-ring and fuel injector back-up rings remaining on the fuel delivery pipe side.
