INSTALL FUEL PRESSURE SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Cutout (Fuel Delivery Pipe)

Cutout (Fuel Pressure Sensor)

Install a new fuel pressure sensor to the fuel delivery pipe as shown in the illustration.
NOTE:
Make sure that the cutout of the fuel delivery pipe is aligned with the cutout of the fuel pressure sensor.

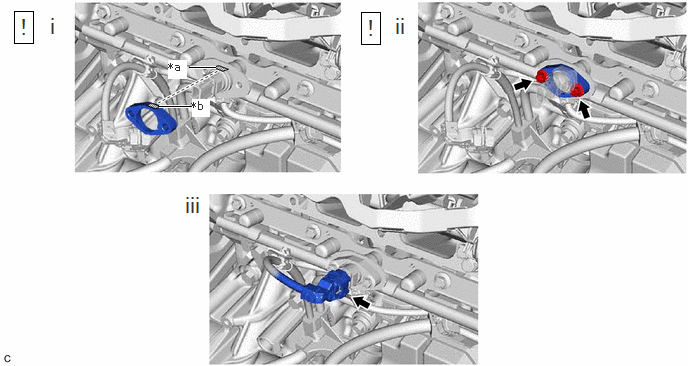

INSTALL NO. 1 FUEL PRESSURE SENSOR HOLDER

Cutout (Fuel Pressure Sensor)

Cutout (No. 1 Fuel Pressure Sensor Holder)

Temporarily install the No. 1 fuel pressure sensor holder to the fuel delivery pipe as shown in the illustration.
NOTE:
Make sure that the cutout of the fuel pressure sensor is aligned with the cutout of the No. 1 fuel pressure sensor holder.
Using an 8 mm socket wrench, install the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Connect the fuel pressure sensor connector.

INSTALL INTAKE MANIFOLD
Refer to INSTALLATION [11/2021 - ]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 5
INSPECT FOR FUEL LEAK
Refer to PROCEDURE - Step 1
PERFORM INITIALIZATION
1. Perform "Inspection After Repair" after replacing the fuel pressure sensor.
  Refer to INITIALIZATION [11/2021 - ]
INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2021 - ]
