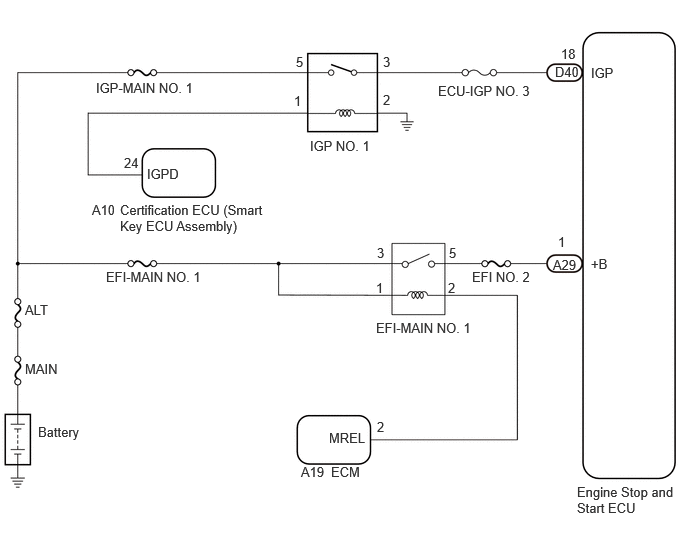

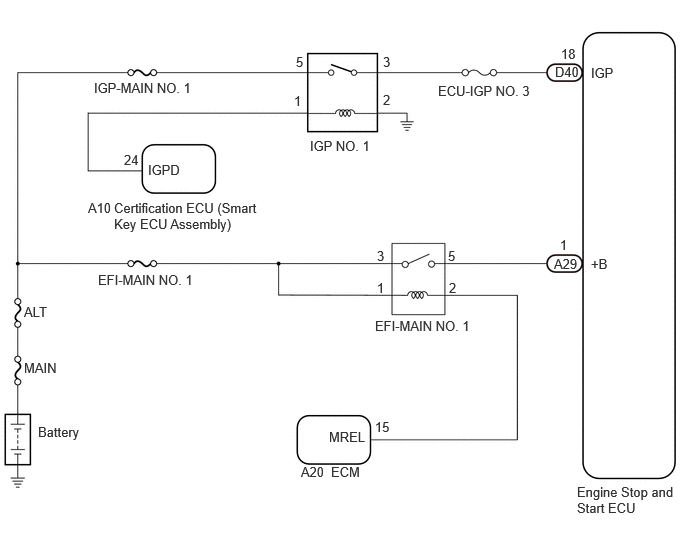

DTC P2530-14: Ignition Switch Circuit Short to Ground or Open [11/2021 - 03/2023]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
