ECM Communication Stop Mode [11/2021 - ]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

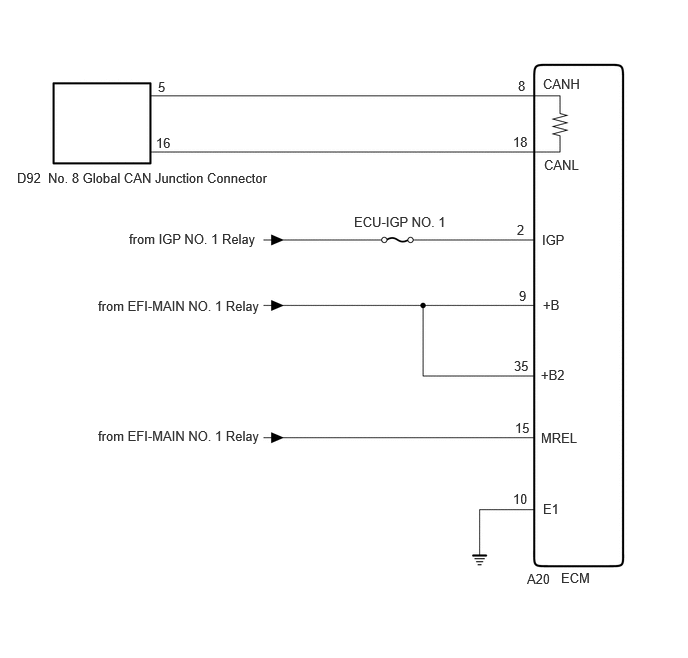

for A25A-FKS:

GTY1059810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

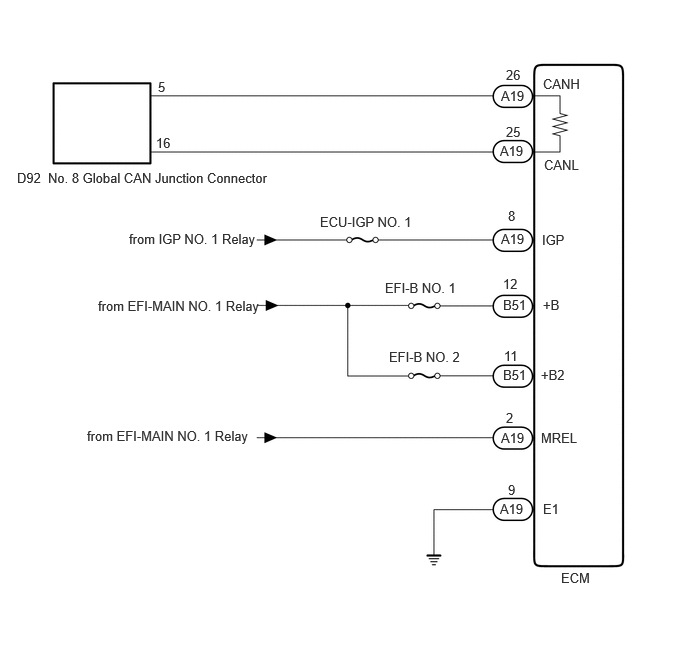

for T24A-FTS:

GTY1060066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
