Immobilizer System does not Operate Properly [11/2021 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FOR DTC
    1. Check for DTCs.

      Body Electrical > Smart Access > Trouble Codes

      Powertrain > Engine > Trouble Codes

      Result

      Result Proceed to
      DTCs are not output A
      DTCs are output B

    Result:

    GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [11/2021 - 03/2023]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [03/2023 - ]

    Result:

    See step  2

  2. READ VALUE USING GTS (IMMOBILIZER FUEL CUT)
    1. Read the Data List according to the display on the GTS.

      Powertrain > Engine > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Immobilizer Fuel Cut Status Immobilizer fuel cut status OFF or ON OFF: Fuel cut OFF
      ON: Fuel cut ON
      -

      Powertrain > Engine > Data List

      Tester Display
      Immobilizer Fuel Cut Status

      Result

      Result Proceed to
      On the GTS screen, ON is displayed. A
      On the GTS screen, OFF is displayed. B

    Result:

    GO TO SFI SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

    for A25A-FKS: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - ]

    for T24A-FTS: Refer to HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - ]

    Result:

    See step  3

  3. CHECK WHETHER ENGINE STARTS
    1. Check that the engine starts after 5 seconds of the ignition switch being turned to ON.

      OK

      Engine starts normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [11/2021 - ]

    Result:

    NG

    See step  4

  4. CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILIZER CODE ECU) - ECM)
    1. Disconnect the D62 ID code box (immobilizer code ECU) connector.
    2. Disconnect the A20*1 or A19*2 ECM connector.
      1. *1: for A25A-FKS
      2. *2: for T24A-FTS
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR A25A-FKS

      Tester Connection Condition Specified Condition
      A20-25 (IMO) - D62-3 (EFII) Always Below 1 Ω
      A20-25 (IMO) or D62-3 (EFII) - Other terminals and body ground Always 10 kΩ or higher
      A20-26 (IMI) - D62-4 (EFIO) Always Below 1 Ω
      A20-26 (IMI) or D62-4 (EFIO) - Other terminals and body ground Always 10 kΩ or higher
      FOR T24A-FTS

      Tester Connection Condition Specified Condition
      A19-37 (IMO) - D62-3 (EFII) Always Below 1 Ω
      A19-37 (IMO) or D62-3 (EFII) - Other terminals and body ground Always 10 kΩ or higher
      A19-38 (IMI) - D62-4 (EFIO) Always Below 1 Ω
      A19-38 (IMI) or D62-4 (EFIO) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  5

  5. CHECK ID CODE BOX (IMMOBILIZER CODE ECU) (TERMINAL EFIO AND EFII)
    1. Connect the A20*1 or A19*2 ECM connector.
      1. *1: for A25A-FKS
      2. *2: for T24A-FTS
    2. Connect the D62 ID code box (immobilizer code ECU) connector.
    3. Using an oscilloscope, check the waveform.

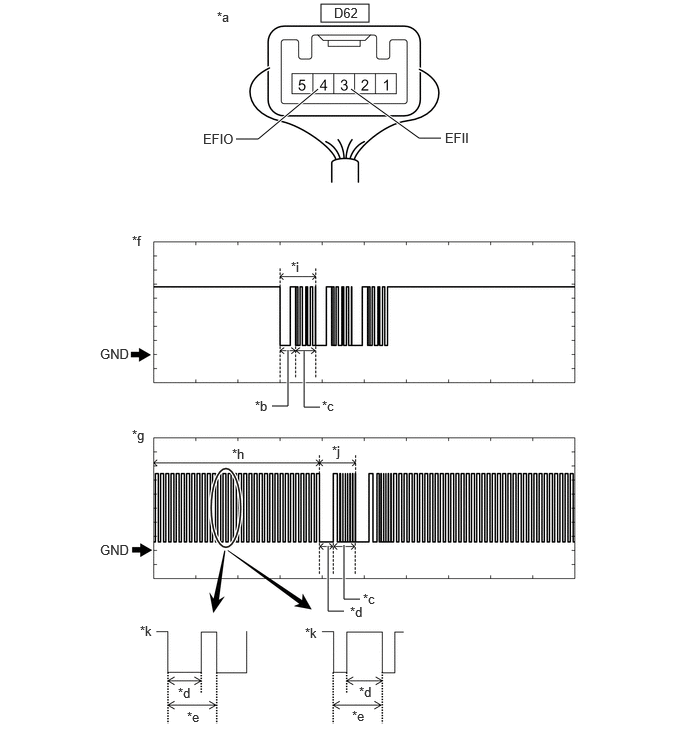

      GTY1059501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (ID Code Box (Immobilizer Code ECU))
      *b Approximately 160 ms.
      *c Approximately 270 ms. *d Approximately 40 ms.
      *e Approximately 60 ms. *f Waveform (EFII)
      *g Waveform (EFIO) *h Waveform 1
      *i Waveform 2 *j Waveform 3
      *k Waveform 1 (detail) - -
      NOTE:

      The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

      OK

      Tester Connection Condition Tool Setting Specified Condition
      D62-3 (EFII) - Body ground Within 3 seconds of engine start or within 3 seconds of ignition switch turned to ON after auxiliary battery cable disconnected and reconnected 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform 2)
      D62-4 (EFIO) - Body ground Within 3 seconds of engine start or within 3 seconds of ignition switch turned to ON after auxiliary battery cable disconnected and reconnected 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform 1 and 3)

      Result

      Result Proceed to
      Normal waveform A
      Waveform 1 is not output, or has abnormal wavelength or shape B
      Waveform 2 or is not output, or has abnormal wavelength or shape C

    Result:

    REPLACE ID CODE BOX (IMMOBILIZER CODE ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    REPLACE ECM

    for A25A-FKS: Refer to REMOVAL [11/2021 - ]

    for T24A-FTS: Refer to REMOVAL [11/2021 - ]

    Result:

    See step  6

  6. REGISTER ECU COMMUNICATION ID
    1. Register the ECU communication ID codes.

      Refer to REGISTRATION [11/2021 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  7

  7. CHECK WHETHER ENGINE STARTS
    1. Check that the engine starts.

      OK

      Engine starts normally.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    END (COMMUNICATION ID REGISTRATION WAS DEFECTIVE)

    Result:

    NG

    REPLACE ID CODE BOX (IMMOBILIZER CODE ECU). Refer to  REMOVAL [11/2021 - ]
