DTC B27A6-13: Rear Floor Electrical Key Oscillator Circuit Open [11/2021 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK CONNECTOR CONNECTION
    1. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 2 indoor electrical key antenna assembly (rear floor).

      OK

      Connectors are properly connected.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    CONNECT CONNECTORS PROPERLY

    Result:

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR))

    Pre-procedure1

    1. Disconnect the G12 certification ECU (smart key ECU assembly) connector.
    2. Disconnect the G13 No. 2 indoor electrical key antenna assembly (rear floor) connector.

      Procedure1

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G12-1 (CLG6) - G13-1 (ANTE6) Always Below 1 Ω
      G12-2 (CG6B) - G13-2 (CLGB) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    4. None

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR))

    Pre-procedure1

    1. Connect the G12 certification ECU (smart key ECU assembly) connector.

      Procedure1

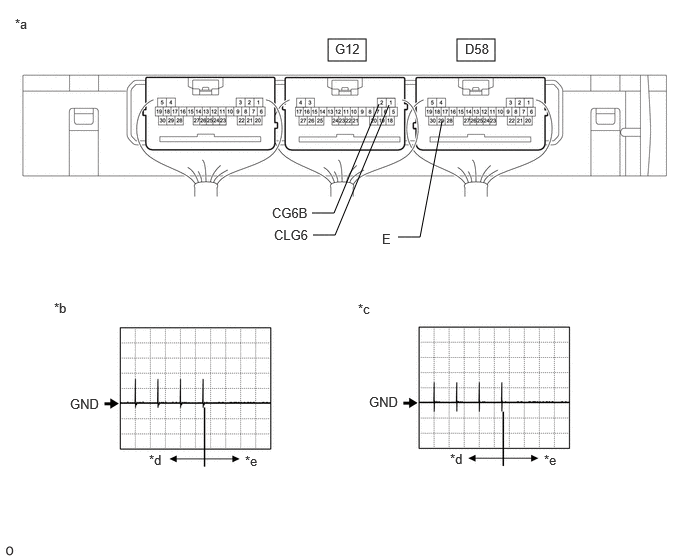

    2. Using an oscilloscope, check the waveform.
      GTY1082272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (Certification ECU (Smart Key ECU Assembly))      		 *b Waveform 1
      *c Waveform 2 *d For 30 seconds after any door closed
      *e After 30 seconds or more have elapsed since any door closed - -

      OK

      Tester Connection Condition Tool Setting Specified Condition
      G12-1 (CLG6) - D58-29 (E) Procedure:
      1. Ignition switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 2 V/DIV., 500 ms/DIV. Pulse generation
      (See waveform 1)
      G12-2 (CG6B) - D58-29 (E) Procedure:
      1. Ignition switch off
      2. Electrical key transmitter sub-assembly not inside vehicle
      3. Within 30 seconds of closing any door
      		 2 V/DIV., 500 ms/DIV. Pulse generation
      (See waveform 2)

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    OK

    REPLACE NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [11/2021 - ]
