DTC B2799-86: Engine Immobilizer System Signal (Some Circuit Quantity, Reported via Serial Data) Invalid [11/2021 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2025 Lexus NX 350, 2025 Lexus NX 250, 2024 Lexus NX 350, 2024 Lexus NX 250, and 2023 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REGISTER ECU COMMUNICATION ID
    1. Register the ECU communication ID code.

      Refer to REGISTRATION [11/2021 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  2

  2. CHECK ID CODE BOX (IMMOBILIZER CODE ECU) (TERMINAL EFII)

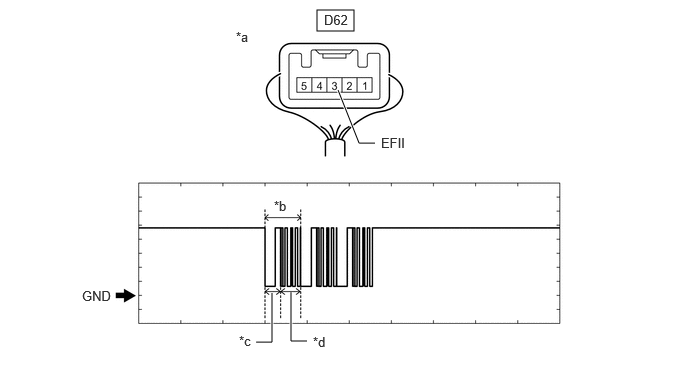

    1. Using an oscilloscope, check the waveform.
      GTY1060262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (ID Code Box (Immobilizer Code ECU))      		 *b Waveform
      *c Approximately 160 ms. *d Approximately 270 ms.

      OK

      Tester Connection Condition Tool Setting Specified Condition
      D62-3 (EFII) - Body ground Within 3 seconds of the engine start operation being performed or within 3 seconds of the ignition switch being turned to ON after connecting the cable to the negative (-) auxiliary battery terminal 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform)

      Result

      Result Proceed to
      Normal waveform A
      Terminal EFII stuck low (2.4 V or less) B
      Waveform not output, or has abnormal wavelength or shape, or terminal EFII stuck high (12 V) C

    Result:

    B

    See step  7

    Result:

    C

    See step  9

    Result:

    A

    See step  3

  3. CHECK ID CODE BOX (IMMOBILIZER CODE ECU) (TERMINAL EFIO)

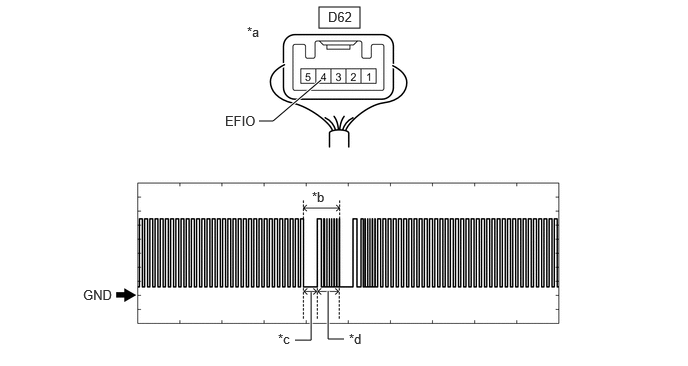

    1. Using an oscilloscope, check the waveform.
      GTY1059823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Component with harness connected
      (ID Code Box (Immobilizer Code ECU))      		 *b Waveform
      *c Approximately 160 ms. *d Approximately 270 ms.

      Measurement Condition

      Tester Connection Condition Tool Setting Specified Condition
      D62-4 (EFIO) - Body ground Within 3 seconds of the engine start operation being performed or within 3 seconds of the ignition switch being turned to ON after connecting the cable to the negative (-) auxiliary battery terminal 2 V/DIV., 500 ms./DIV. Pulse generation
      (See waveform)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  6

    Result:

    OK

    See step  4

  4. REGISTER ECU COMMUNICATION ID (ID CODE BOX (IMMOBILIZER CODE ECU) - ECM)
    1. Register the ECU communication ID codes.

      Refer to REGISTRATION [11/2021 - ]

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. CHECK WHETHER ENGINE STARTS

    Pre-procedure1

    1. Using an electrical key transmitter sub-assembly which is registered to the vehicle, turn the ignition switch to ON.

      Procedure1

    2. Check that the engine can be started 5 seconds after the ignition switch turned to ON.

      OK

      Engine starts normally.

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    OK

    END (ECU COMMUNICATION ID HAS NOT BEEN REGISTERED)

    Result:

    NG

    REPLACE ECM

    for A25A-FKS: Refer to REMOVAL [11/2021 - ]

    for T24A-FTS: Refer to REMOVAL [11/2021 - ]

  6. CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILIZER CODE ECU) - ECM)
    1. Disconnect the D62 ID code box (immobilizer code ECU) connector.
    2. Disconnect the A20*1 or A19*2 ECM connector.
      1. *1: for A25A-FKS
      2. *2: for T24A-FTS
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR A25A-FKS

      Tester Connection Condition Specified Condition
      D62-4 (EFIO) - A25-26 (IMI) Always Below 1 Ω
      D62-4 (EFIO) or A20-26 (IMI) - Other terminals and body ground Always 10 kΩ or higher
      FOR T24A-FTS

      Tester Connection Condition Specified Condition
      D62-4 (EFIO) - A19-38 (IMI) Always Below 1 Ω
      D62-4 (EFIO) or A19-38 (IMI) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ID CODE BOX (IMMOBILIZER CODE ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  7. CHECK ECM

    Pre-procedure1

    1. Disconnect the A20*1 or A19*2 ECM connector.
      1. *1: for A25A-FKS
      2. *2: for T24A-FTS

      Procedure1

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      FOR A25A-FKS

      Tester Connection Condition Specified Condition
      A20-25 (IMO) - Body ground Ignition switch turned to ON using registered electrical key transmitter sub-assembly Terminal IMO stuck low (2.4 V or less)
      Terminal IMO stuck high (12 V) or abnormal waveform
      FOR T24A-FTS

      Tester Connection Condition Specified Condition
      A19-37 (IMO) - Body ground Ignition switch turned to ON using registered electrical key transmitter sub-assembly Terminal IMO stuck low (2.4 V or less)
      Terminal IMO stuck high (12 V) or abnormal waveform

      Result

      Result Proceed to
      Terminal IMO stuck low (2.4 V or less) A
      Terminal IMO stuck high (12 V) or abnormal waveform B

      Post-procedure1

    3. None

    Result:

    B

    REPLACE ECM

    for A25A-FKS: Refer to REMOVAL [11/2021 - ]

    for T24A-FTS: Refer to REMOVAL [11/2021 - ]

    Result:

    A

    See step  8

  8. CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILIZER CODE ECU) - ECM)

    Pre-procedure1

    1. Disconnect the D62 ID code box (immobilizer code ECU) connector.

      Procedure1

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR A25A-FKS

      Tester Connection Condition Specified Condition
      D62-3 (EFII) - A20-25 (IMO) Always Below 1 Ω
      D62-3 (EFII) or A20-25 (IMO) - Other terminals and body ground Always 10 kΩ or higher
      D62-4 (EFIO) - A20-26 (IMI) Always Below 1 Ω
      D62-4 (EFIO) or A20-26 (IMI) - Other terminals and body ground Always 10 kΩ or higher
      FOR T24A-FTS

      Tester Connection Condition Specified Condition
      D62-3 (EFII) - A19-37 (IMO) Always Below 1 Ω
      D62-3 (EFII) or A19-37 (IMO) - Other terminals and body ground Always 10 kΩ or higher
      D62-4 (EFIO) - A19-38 (IMI) Always Below 1 Ω
      D62-4 (EFIO) or A19-38 (IMI) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

      Post-procedure1

    3. None

    Result:

    OK

    REPLACE ID CODE BOX (IMMOBILIZER CODE ECU). Refer to  REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  9. CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILIZER CODE ECU) - ECM)
    1. Disconnect the D62 ID code box (immobilizer code ECU) connector.
    2. Disconnect the A20*1 or A19*2 ECM connector.
      1. *1: for A25A-FKS
      2. *2: for T24A-FTS
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      FOR A25A-FKS

      Tester Connection Condition Specified Condition
      D62-3 (EFII) - A20-25 (IMO) Always Below 1 Ω
      D62-3 (EFII) or A20-25 (IMO) - Other terminals and body ground Always 10 kΩ or higher
      FOR T24A-FTS

      Tester Connection Condition Specified Condition
      D62-3 (EFII) - A19-26 (IMO) Always Below 1 Ω
      D62-3 (EFII) or A19-26 (IMO) - Other terminals and body ground Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM

    for A25A-FKS: Refer to REMOVAL [11/2021 - ]

    for T24A-FTS: Refer to REMOVAL [11/2021 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
