Reassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)
    1. GTY1063780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a press, install a new front differential case front tapered roller bearing (inner race) to the differential case assembly.
        • SST: 09316-20011
        • SST: 09513-36040
        NOTE:
        • Do not damage the front differential case front tapered roller bearing (inner race) cage when installing the front differential case front tapered roller bearing (inner race).
        • Be sure to install the front differential case front tapered roller bearing (inner race) so that there is no clearance between the front differential case front tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  2. INSTALL FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
    1. GTY1061420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a hammer, install the differential drive pinion shim and a new front differential case front tapered roller bearing (outer race) to the transaxle housing.
        • SST: 09950-60021
          1. 09951-00890
        • SST: 09950-70010
          1. 09951-07200
        NOTE:

        Be sure to install the front differential case front tapered roller bearing (outer race) so that there is no clearance between the front differential case front tapered roller bearing (outer race), differential drive pinion shim and the transaxle housing. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

  3. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)
    1. GTY1060923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a press, install a new front differential case rear tapered roller bearing (inner race) to the differential case assembly.
        • SST: 09316-20011
        • SST: 09950-60021
          1. 09951-00890
        • SST: 09950-70010
          1. 09951-07200
        NOTE:
        • Do not damage the front differential case rear tapered roller bearing (inner race) cage when installing the front differential case rear tapered roller bearing (inner race).
        • Be sure to install the front differential case rear tapered roller bearing (inner race) so that there is no clearance between the front differential case rear tapered roller bearing (inner race) and the differential case assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.
  4. INSTALL FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
    1. GTY1060891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using SST and a hammer, install a new front differential case rear tapered roller bearing (outer race) to the automatic transaxle case sub-assembly.
        • SST: 09950-60021
          1. 09951-00790
        • SST: 09950-70010
          1. 09951-07200
        NOTE:

        Be sure to install the front differential case rear tapered roller bearing (outer race) so that there is no clearance between the front differential case rear tapered roller bearing (outer race) and the automatic transaxle case sub-assembly. If there is any clearance, the turning torque of the differential case assembly cannot be measured correctly.

  5. INSTALL FRONT DRIVE SHAFT OIL SEAL RH

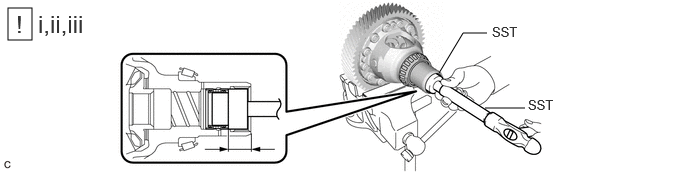

    1. GTY1063934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Hold the differential case assembly in a vise between aluminum plates.
      2. Coat the lip of a new front drive shaft oil seal RH with MP grease.
      3. Using SST and a hammer, install a new front drive shaft oil seal RH to the differential case assembly.
        • SST: 09950-60011
          1. 09951-00410
        • SST: 09950-70010
          1. 09951-07200

        Standard Depth

        21.5 to 22.5 mm (0.846 to 0.886 in.)

        NOTE:

        Do not damage the lip of the front drive shaft oil seal RH.
