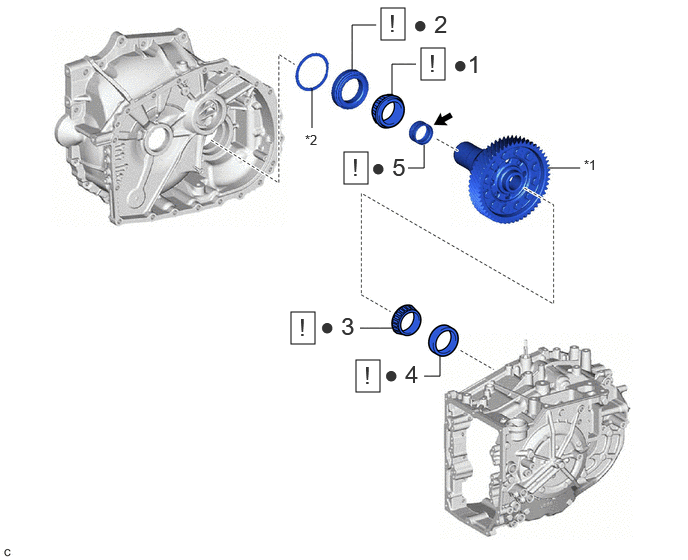

COMPONENTS (REASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) | - | See step 1 | - | - |
| 2 | FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) | - | See step 2 | - | - |
| 3 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) | - | See step 3 | - | - |
| 4 | FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) | - | See step 4 | - | - |
| 5 | FRONT DRIVE SHAFT OIL SEAL RH | 43410M | See step 5 | - | - |
| *1 | DIFFERENTIAL CASE ASSEMBLY | *2 | DIFFERENTIAL DRIVE PINION SHIM |
| • | Non-reusable part | MP grease |
