Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENTS (DISASSEMBLY)

Fig 1: UB80F Automatic Transaxle Unit Disassembly Components (1 Of 17)
GTY1062154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
1 SHIFT CONTROL ACTUATOR ASSEMBLY 35580B - - -
2 SHIFT CONTROL ACTUATOR BRACKET 35541A - - -
Fig 2: UB80F Automatic Transaxle Unit Disassembly Components (2 Of 17)
GTY1061989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
3 REFILL PLUG - - - -
4 OVERFLOW PLUG - See step  4 - -
5 NO. 1 TRANSMISSION OIL FILLER TUBE 35125C See step  5 - -
6 OIL COOLER UNION SUB-ASSEMBLY 32901C - - -
7 NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY 32905 See step  7 - -
*1 OIL COOLER UNION BOLT *2 GASKET
*3 O-RING - -
• Non-reusable part - -

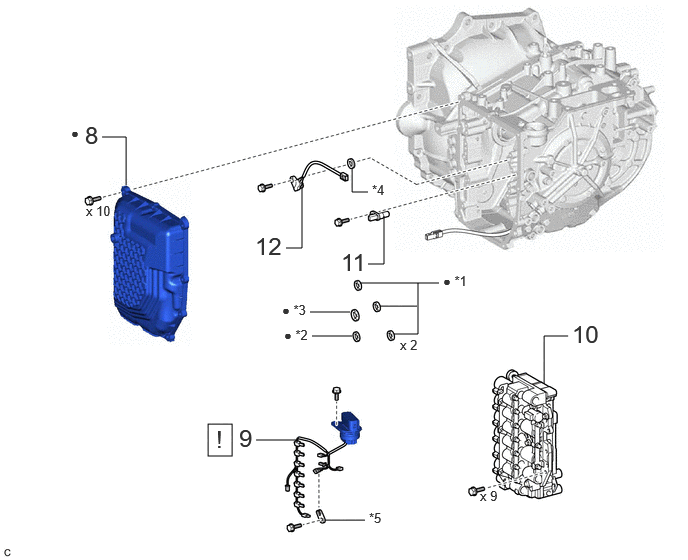

Fig 3: UB80F Automatic Transaxle Unit Disassembly Components (3 Of 17)
GTY1061756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
8 TRANSMISSION CASE SIDE COVER 35151F - - -
9 TRANSMISSION WIRE 82125T See step  9 - -
10 TRANSMISSION VALVE BODY ASSEMBLY 35410 - - -
11 TRANSMISSION REVOLUTION SENSOR (NT) 89413N - - -
12 TRANSMISSION REVOLUTION SENSOR (NC) - - - -
*1 TRANSAXLE CASE GASKET *2 NO. 1 FRONT OIL PUMP COVER GASKET
*3 NO. 2 FRONT OIL PUMP COVER GASKET *4 SPACER
*5 TEMPERATURE SENSOR CLAMP - -
• Non-reusable part - -
Fig 4: UB80F Automatic Transaxle Unit Disassembly Components (4 Of 17)
GTY1061729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
13 INPUT SHAFT END PLAY - - - See step  13
14 TRANSAXLE HOUSING 3511C See step  14 - -
15 TRANSAXLE HOUSING OIL SEPARATOR 35174 - - -
16 REMOVE TRANSMISSION OIL CLEANER MAGNET 35394 - - -
17 INSPECT TRANSMISSION OIL CLEANER MAGNET - - - See step  17
18 DIFFERENTIAL GEAR LUBE APPLY TUBE 35882C - - -
19 TRANSMISSION LUBE APPLY TUBE 35847C - - -
*1 CLAMP *2 O-RING
*3 TRANSAXLE CASE GASKET - -
• Non-reusable part - -

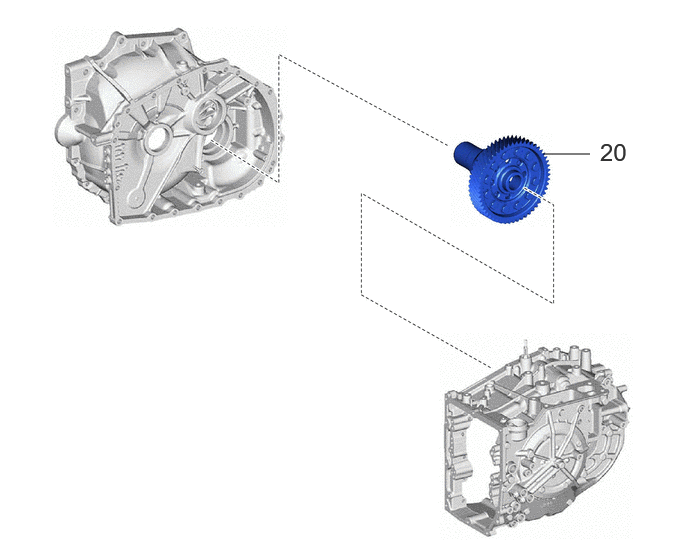

Fig 5: UB80F Automatic Transaxle Unit Disassembly Components (5 Of 17)
GTY1065465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
20 DIFFERENTIAL CASE ASSEMBLY - - - -
Fig 6: UB80F Automatic Transaxle Unit Disassembly Components (6 Of 17)
GTY1062278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
21 CLUTCH DRUM OIL SEAL RING 35617F - - -
22 OIL PUMP SPROCKET FRONT THRUST WASHER 35354 - - -
23 TRANSMISSION DRIVE CHAIN 35781C See step  23 - -
24 OIL PUMP SPROCKET REAR THRUST WASHER 35355 - - -
25 MANUAL DETENT SPRING SUB-ASSEMBLY 35409D - - -
26 FRONT OIL PUMP ASSEMBLY - See step  26 - -
27 NO. 1 BREATHER PLUG (ATM) 35104B See step  27 - -
*1 TRANSMISSION OIL PUMP DRIVE SPROCKET *2 OIL PUMP DRIVE SHAFT SUB-ASSEMBLY
• Non-reusable part - -
Fig 7: UB80F Automatic Transaxle Unit Disassembly Components (7 Of 17)
GTY1065563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
28 PLANETARY CARRIER THRUST WASHER 35737 - - -
29 C-3 AND C-4 CLUTCH ASSEMBLY 34610 - - -
30 CLEARANCE OF C-3 CLUTCH - - - See step  30
31 CLEARANCE OF C-4 CLUTCH - - - See step  31
Fig 8: UB80F Automatic Transaxle Unit Disassembly Components (8 Of 17)
GTY1062244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
32 NO. 2 PLANETARY CARRIER THRUST WASHER 35738 - - -
33 PLANETARY SUN GEAR 35719B - - -
34 NO. 9 THRUST BEARING RACE 35779A - - -
35 THRUST NEEDLE ROLLER BEARING 35778A - - -
36 NO. 8 THRUST BEARING RACE 35778 - - -
37 REMOVE FRONT PLANETARY GEAR ASSEMBLY 35720 - - -
38 THRUST NEEDLE ROLLER BEARING - - - -
39 NO. 7 THRUST BEARING RACE 35777 - - -
40 INSPECT FRONT PLANETARY GEAR ASSEMBLY 35720 - - See step  40
41 INPUT SHAFT OIL SEAL RING 35712E See step  41 - -
42 REAR INPUT SHAFT OIL SEAL RING 35749B See step  42 - -
43 FRONT PLANETARY RING GEAR 35743 See step  43 - -
44 THRUST NEEDLE ROLLER BEARING - - - -
45 NO. 6 THRUST BEARING RACE 35776 - - -
*1 SNAP RING *2 FRONT PLANETARY RING GEAR FLANGE
• Non-reusable part - -
Fig 9: UB80F Automatic Transaxle Unit Disassembly Components (9 Of 17)
GTY1064840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
46 SUN GEAR INPUT HUB SUB-ASSEMBLY 35606M - - -
47 CLEARANCE OF C-1 CLUTCH - - - See step  47
48 REMOVE REAR PLANETARY SUN GEAR SUB-ASSEMBLY 35707D See step  48 - -
49 PLANETARY SUN GEAR SUB-ASSEMBLY 35706V - - See step  49
50 INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY 35707D - - See step  50
51 C-1 CLUTCH ASSEMBLY - - - -
52 NO. 5 THRUST BEARING RACE - - - -
53 THRUST NEEDLE ROLLER BEARING 35775K - - -
54 TOLERANCE RING - See step  54 - -
55 REMOVE FRONT CLUTCH CLUTCH DISC 35633 See step  55 - -
56 INSPECT FRONT CLUTCH CLUTCH DISC 35633 - - See step  56
57 NO. 1 CLUTCH BALANCER 35633 See step  57 - -
58 REAR CLUTCH PISTON RETURN COMPRESSION SPRING 35668 - - -
59 FORWARD CLUTCH PISTON 35612B See step  59 - -
*1 SNAP RING *2 FORWARD CLUTCH FLANGE
*3 FORWARD MULTIPLE DISC CLUTCH CLUTCH PLATE *4 PLANETARY SUN GEAR SUB-ASSEMBLY
*5 NO. 4 THRUST BEARING RACE *6 THRUST NEEDLE ROLLER BEARING
*7 THRUST BEARING RACE *8 NO. 3 THRUST BEARING RACE
*9 NO. 2 THRUST BEARING RACE *10 O-RING
*11 D-RING - -
• Non-reusable part - -
Fig 10: UB80F Automatic Transaxle Unit Disassembly Components (10 Of 17)
GTY1062923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
60 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY 35506 See step  60 - -
61 MANUAL VALVE LEVER SUB-ASSEMBLY 35505 - - -
62 PAWL STOPPER PLATE 35596 - - -
63 MANUAL VALVE LEVER SHAFT RETAINER SPRING 35506J - - -
64 PARKING LOCK ROD SUB-ASSEMBLY 35501 See step  64 - -
65 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY 35506 - - -
66 PARKING LOCK PAWL TORSION SPRING 35557A - - -
67 PARKING LOCK PAWL SHAFT 35556 - - -
68 PARKING LOCK PAWL 35557 - - -
69 PARKING LOCK SLEEVE 35598 - - -
*1 O-RING - -
• Non-reusable part - -
Fig 11: UB80F Automatic Transaxle Unit Disassembly Components (11 Of 17)
GTY1062380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
70 CLEARANCE OF B-1 BRAKE - - - See step  70
71 COUNTER DRIVE GEAR SUB-ASSEMBLY 35704C - - -
72 REMOVE NO. 1 BRAKE DISC 35681C See step  72 - -
73 INSPECT NO. 1 BRAKE DISC 35681C - - See step  73
74 NO. 3 PLANETARY CARRIER THRUST WASHER 35739 - - -
75 REMOVE REAR PLANETARY GEAR ASSEMBLY 35760 - - -
76 NO. 4 PLANETARY CARRIER THRUST WASHER 35729B - - -
77 INSPECT REAR PLANETARY GEAR ASSEMBLY 35760 - - See step  77
*1 SNAP RING *2 NO. 1 BRAKE FLANGE
*3 NO. 1 BRAKE DISC *4 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY
• Non-reusable part - -
Fig 12: UB80F Automatic Transaxle Unit Disassembly Components (12 Of 17)
GTY1062592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
78 THRUST NEEDLE ROLLER BEARING - - - -
79 NO. 2 THRUST BEARING RACE 35787C - - -
80 CLEARANCE OF C-2 CLUTCH - - - See step  80
81 C-2 CLUTCH ASSEMBLY - - - -
82 THRUST NEEDLE ROLLER BEARING - - - -
83 NO. 1 THRUST BEARING RACE 35786A - - -
84 REMOVE NO. 2 CLUTCH DISC 35567B See step  84 - -
85 INSPECT NO. 2 CLUTCH DISC 35567B - - See step  85
86 C-2 CLUTCH BALANCER 35698A See step  86 - -
87 REMOVE CLUTCH RETURN SPRING SUB-ASSEMBLY 35608N - - -
88 INSPECT CLUTCH RETURN SPRING SUB-ASSEMBLY 35608N - - See step  88
89 C-2 CLUTCH PISTON 35652E See step  89 - -
90 DIRECT CLUTCH DRUM OIL SEAL RING 35653B - - -
*1 SNAP RING *2 DIRECT CLUTCH FLANGE
*3 NO. 2 CLUTCH PLATE *4 O-RING
*5 INTERMEDIATE SHAFT SUB-ASSEMBLY - -
• Non-reusable part - -
Fig 13: UB80F Automatic Transaxle Unit Disassembly Components (13 Of 17)
GTY1062205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
91 CLEARANCE OF B-2 BRAKE - - - See step  91
92 REMOVE 2ND BRAKE BRAKE DISC 35682 See step  92 - -
93 INSPECT 2ND BRAKE BRAKE DISC 35682 - - See step  93
94 NO. 2 1ST AND REVERSE BRAKE PISTON 35623P - - -
95 REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY 35068 See step  95 - -
96 INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY 35068 - - See step  96
97 1ST AND REVERSE BRAKE PISTON 35623H See step  97 - -
*1 SNAP RING *2 2ND BRAKE BRAKE FLANGE
*3 2ND BRAKE BRAKE PLATE *4 O-RING
• Non-reusable part - -
Fig 14: UB80F Automatic Transaxle Unit Disassembly Components (14 Of 17)
GTY1065716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
98 MANUAL VALVE LEVER SHAFT OIL SEAL - See step  98 - -
99 TRANSAXLE CASE OIL SEAL - See step  99 - -
100 DIFFERENTIAL SIDE OIL SEAL 43410M See step  100 - -
101 FRONT DRIVE SHAFT OIL SEAL LH 43420H See step  101 - -
• Non-reusable part - -
Fig 15: UB80F Automatic Transaxle Unit Disassembly Components (15 Of 17)
GTY1064583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
102 NEEDLE ROLLER BEARING 35605C See step  102 - -
103 NO. 1 TRANSAXLE CASE PLUG 35104Q - - -
104 NO. 2 TRANSAXLE CASE PLUG 35104R - - -
105 AUTOMATIC TRANSMISSION CASE STRAIGHT PIN 35101E - - -
*1 O-RING *2 GASKET
• Non-reusable part - -
Fig 16: UB80F Automatic Transaxle Unit Disassembly Components (16 Of 17)
GTY1062426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
106 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE) - See step  106 - -
107 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE) - See step  107 - -
108 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE) - See step  108 - -
109 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE) - See step  109 - -
*1 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY *2 PINION AND COUNTER DRIVEN GEAR SHIM

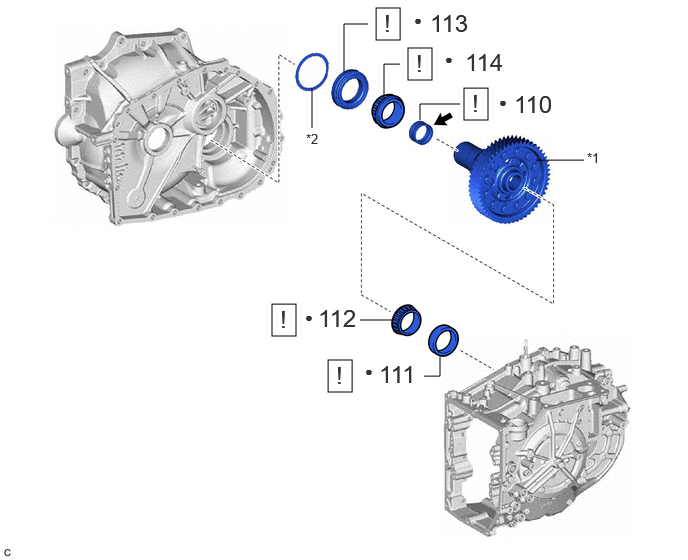

Fig 17: UB80F Automatic Transaxle Unit Disassembly Components (17 Of 17)
GTY1064310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
110 FRONT DRIVE SHAFT OIL SEAL RH 43410M See step  110 - -
111 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE) - See step  111 - -
112 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) - See step  112 - -
113 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE) - Refer to DISASSEMBLY [11/2021 - ]  - -
114 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) - See step  114 - -
*1 DIFFERENTIAL CASE ASSEMBLY *2 DIFFERENTIAL DRIVE PINION SHIM
• Non-reusable part - -
