Disassembly [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE CLUTCH DRUM OIL SEAL RING
    1. GTY1061409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 4 clutch drum oil seal rings from the stator shaft assembly.
        NOTE:

        Do not expand the gap of the clutch drum oil seal rings excessively.

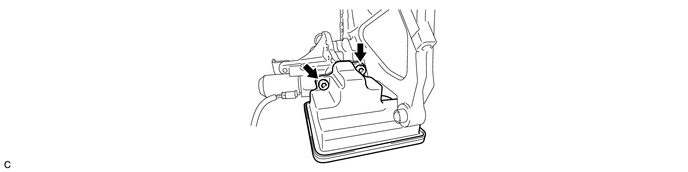

  2. REMOVE OIL STRAINER ASSEMBLY
    1. GTY1060484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, remove the 2 "TORX" bolts and oil strainer assembly from the front oil pump cover sub-assembly.

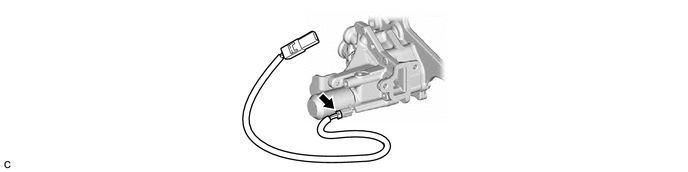

  3. REMOVE TRANSMISSION WIRE (OIL PUMP WITH SOLENOID ASSEMBLY)
    1. GTY1060483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

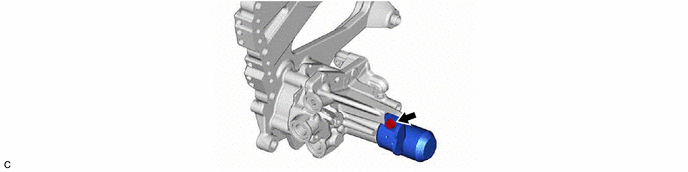

  4. REMOVE OIL PUMP WITH SOLENOID ASSEMBLY
    1. GTY1060524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE STATOR SHAFT ASSEMBLY
    1. GTY1061477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE FRONT OIL PUMP DRIVE GEAR
    1. GTY1060521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT OIL PUMP DRIVEN GEAR
    1. GTY1060520Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FRONT OIL PUMP BODY
    1. GTY1060519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE RING PIN
    1. GTY1061476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
