Installation [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL STARTER ASSEMBLY
- Bolt
Torque: 46 N.m (469 kgf/cm, 34 ft.lbf)
Nut
Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)
- Bolt

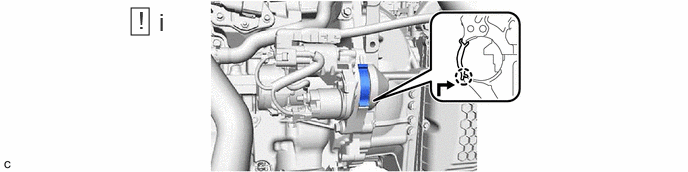

- INSTALL FLYWHEEL HOUSING SIDE COVER
- Align the protrusion with the cylinder block sub-assembly and engage the claw as shown in the illustration to install the flywheel housing side cover.NOTE:
- Make sure the claw makes a click sound, indicating that it fits tightly.
- Replace the flywheel housing side cover with a new one if the claw does not fit tightly or is deformed.
- Align the protrusion with the cylinder block sub-assembly and engage the claw as shown in the illustration to install the flywheel housing side cover.
- INSTALL FRONT ENGINE MOUNTING INSULATOR
Refer to INSTALLATION [11/2021 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 5
- INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
