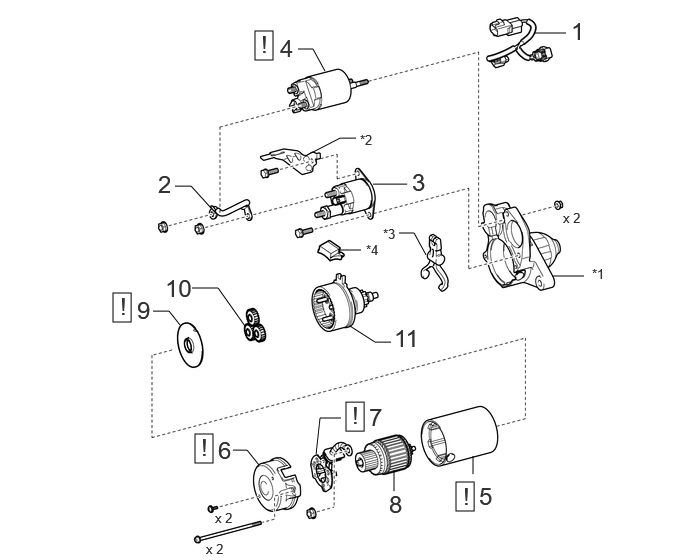

COMPONENTS (DISASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | HARNESS | - | - | - | - |
| 2 | WIRE HARNESS | - | - | - | - |
| 3 | STARTER INRUSH CURRENT REDUCTION RELAY | 28249 | - | - | - |
| 4 | MAGNET STARTER SWITCH ASSEMBLY | 28150 | See step 4 | - | - |
| 5 | STARTER YOKE ASSEMBLY | 28120 | See step 5 | - | - |
| 6 | STARTER COMMUTATOR END FRAME ASSEMBLY | - | See step 6 | - | - |
| 7 | STARTER BRUSH HOLDER ASSEMBLY | 28140 | See step 7 | - | - |
| 8 | STARTER ARMATURE ASSEMBLY | 28160 | - | - | - |
| 9 | STARTER ARMATURE PLATE | - | See step 9 | - | - |
| 10 | PLANETARY GEAR | - | - | - | - |
| 11 | STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY | 28021 | - | - | - |
| *1 | STARTER DRIVE HOUSING ASSEMBLY | *2 | BRACKET |
| *3 | PINION DRIVE LEVER | *4 | RUBBER SEAL |
