Installation [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 250, 2024 Lexus NX 250, 2023 Lexus NX 250, and 2022 Lexus NX 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)
    1. GTY1078975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using an E8 "TORX" socket wrench, install the stud bolt.

        Torque: 9.8 N.m (100 kgf/cm, 87 in.lbf)

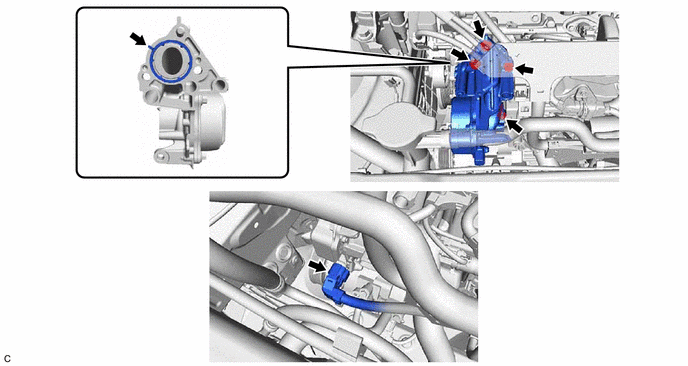

    2. GTY1077416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

    3. GTY1076955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protrusion *b Cutout
      1. Align the protrusion of the engine water pump assembly (water inlet housing) with the cutout in the sensor wire.
      2. Using an 8 mm socket wrench, connect the sensor wire to the engine water pump assembly (water inlet housing) with the bolt.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Connect the sensor wire connector.
  2. INSTALL WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

    Refer to INSTALLATION [11/2021 - ]
