NOTE:
This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]

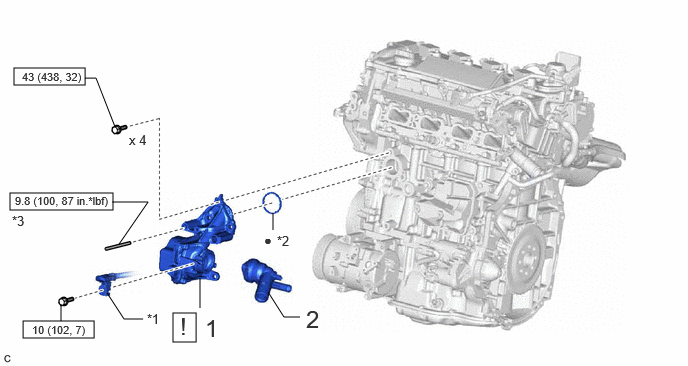

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | 16032 | See step 1 | - | - |
| 2 | WATER INLET WITH THERMOSTAT SUB-ASSEMBLY | 16031 | - | - | - |
| *1 | SENSOR WIRE | *2 | GASKET |
| *3 | STUD BOLT | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
